Heat Retention Cartridge

  • Fire resistant - Mould resistant - Recyclable

Size Options
  • Very Low stock - 9 items left
  • Backordered, shipping soon
Regular price£69.95
Total for selected quantity
/
Ex VAT: £58.29
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Ducting Size Options
Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • Arcus - 75cm Vented Induction Hob With Built In Extractor
    1 × Arcus - 75cm Vented Induction Hob With Built In Extractor
Basket total£1,386.75

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
Heat Retention Cartridge
£69.95

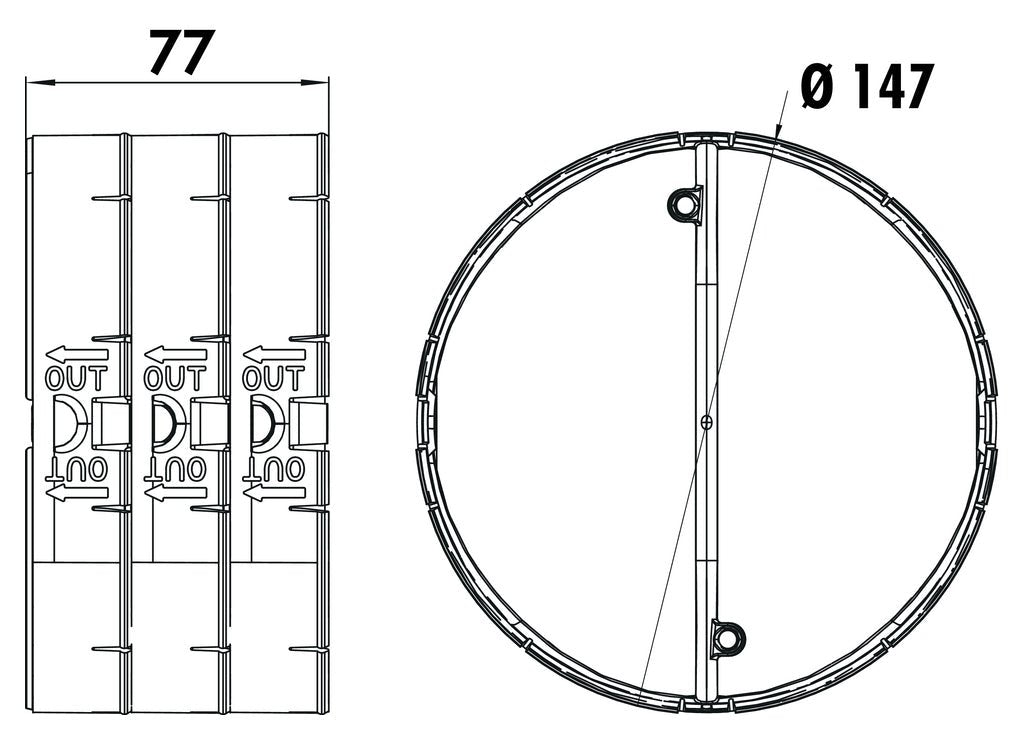

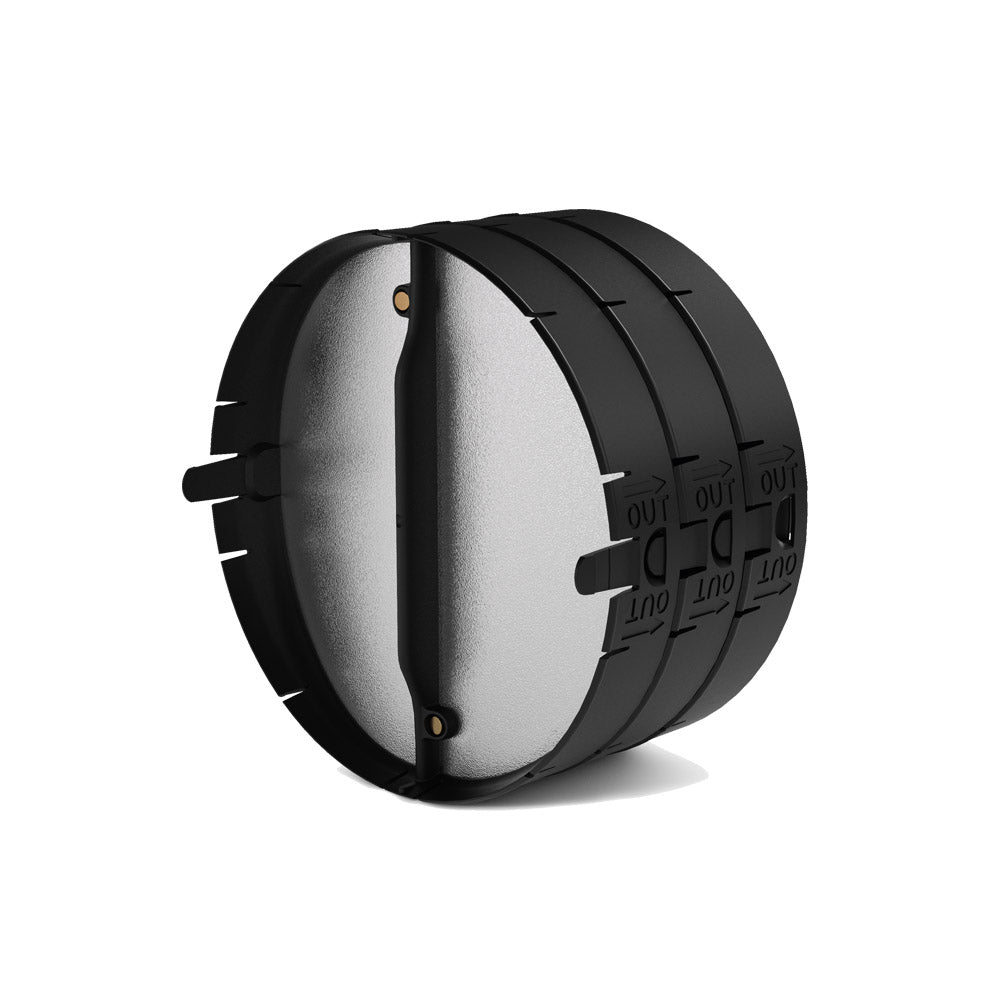

Luxair Thermobox® Heat Retention Cartridge — 125mm and 150mm

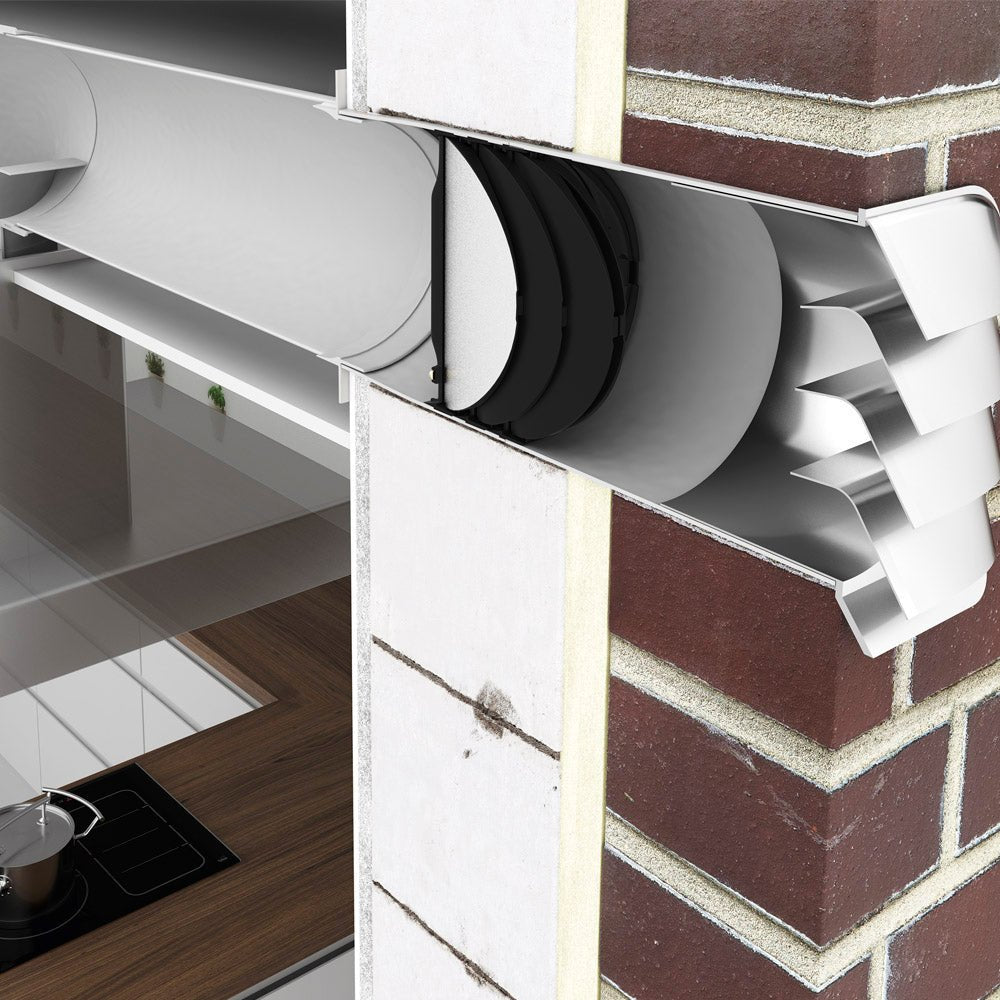

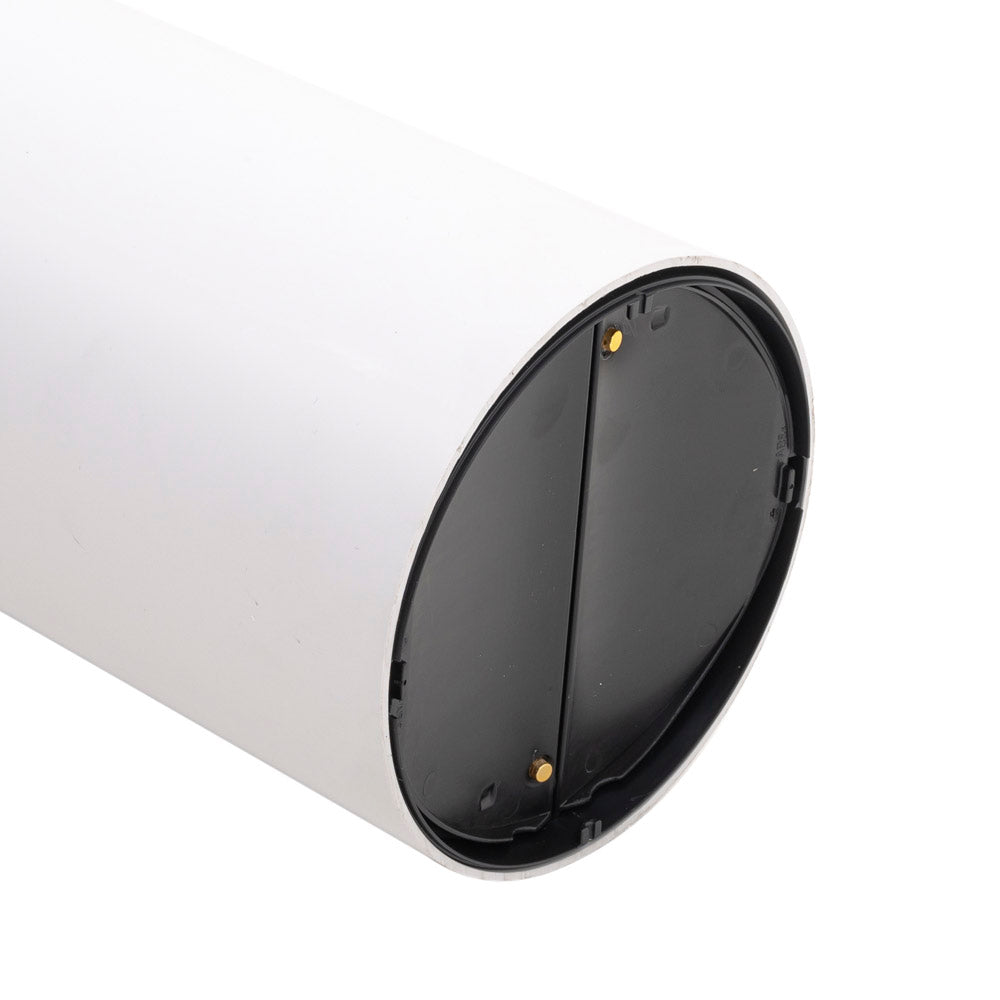

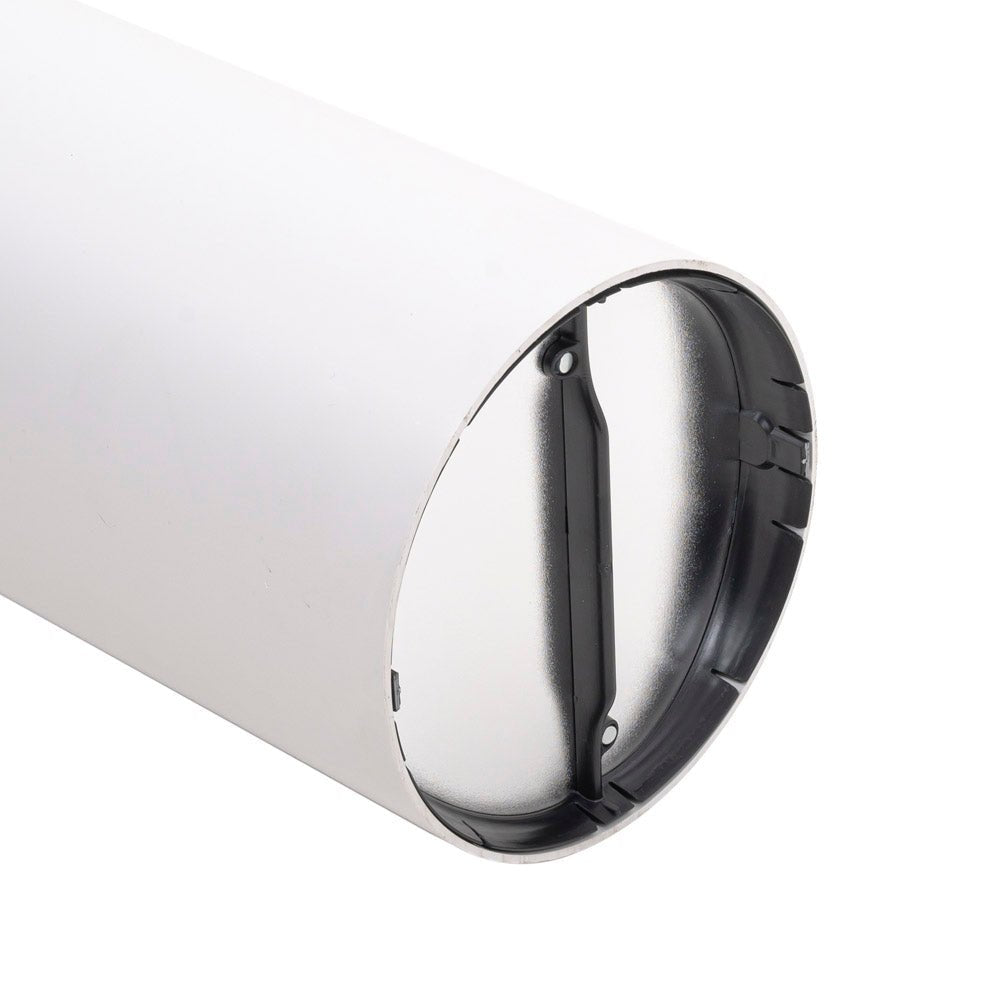

The Thermobox® is a multi-award-winning heat retention cartridge that fits within a 125mm (5") or 150mm (6") ducting vent or round ducting tube. It is a purely mechanical back-pressure shutter solution — no power required, no wiring, and it can be retrofitted to any existing ducting installation.

The Problem It Solves

Every ducted cooker hood extraction system has one weak point: the wall vent or duct outlet through the external wall. When the hood is not in use, this opening allows cold air to enter the building, warm air to escape, and on windy days produces the characteristic noisy flapping sound of standard vent flaps. In draughty or exposed properties this heat loss is continuous and significant — a permanent gap in the building's thermal envelope directly behind the kitchen.

How the Thermobox® Works

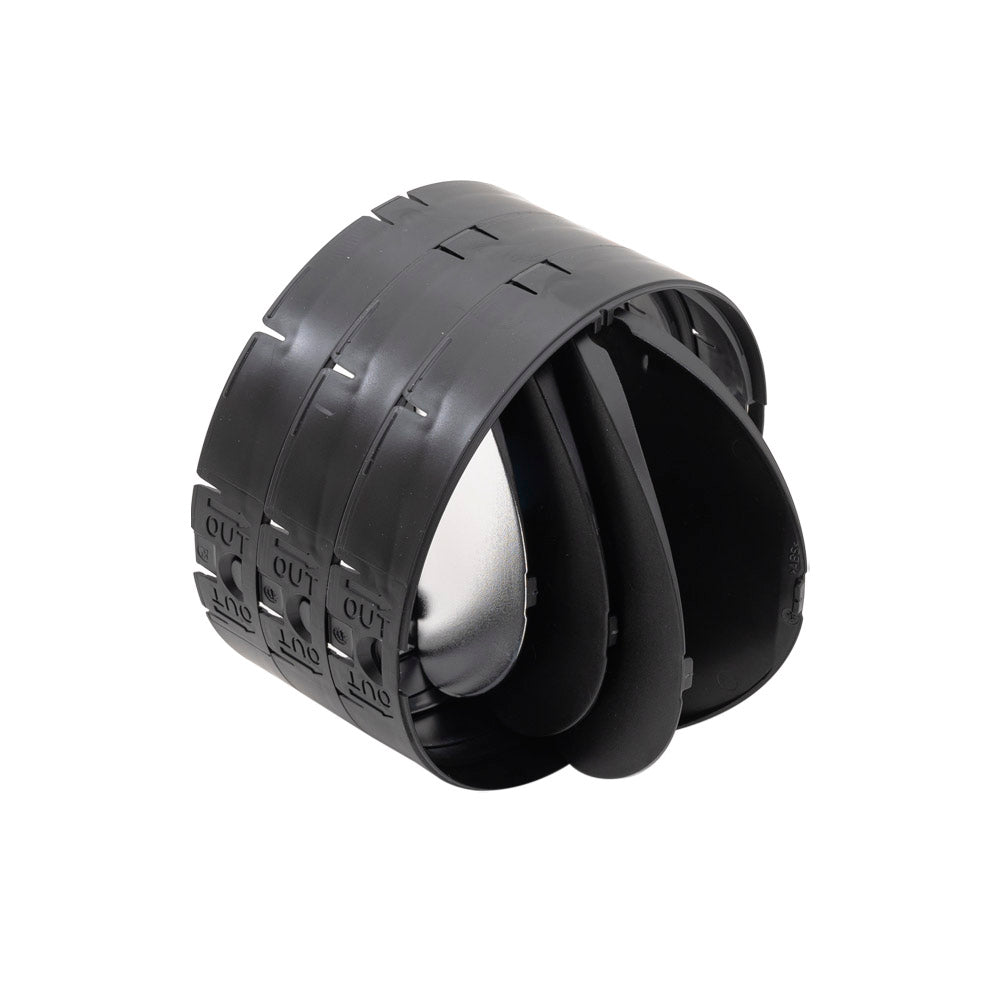

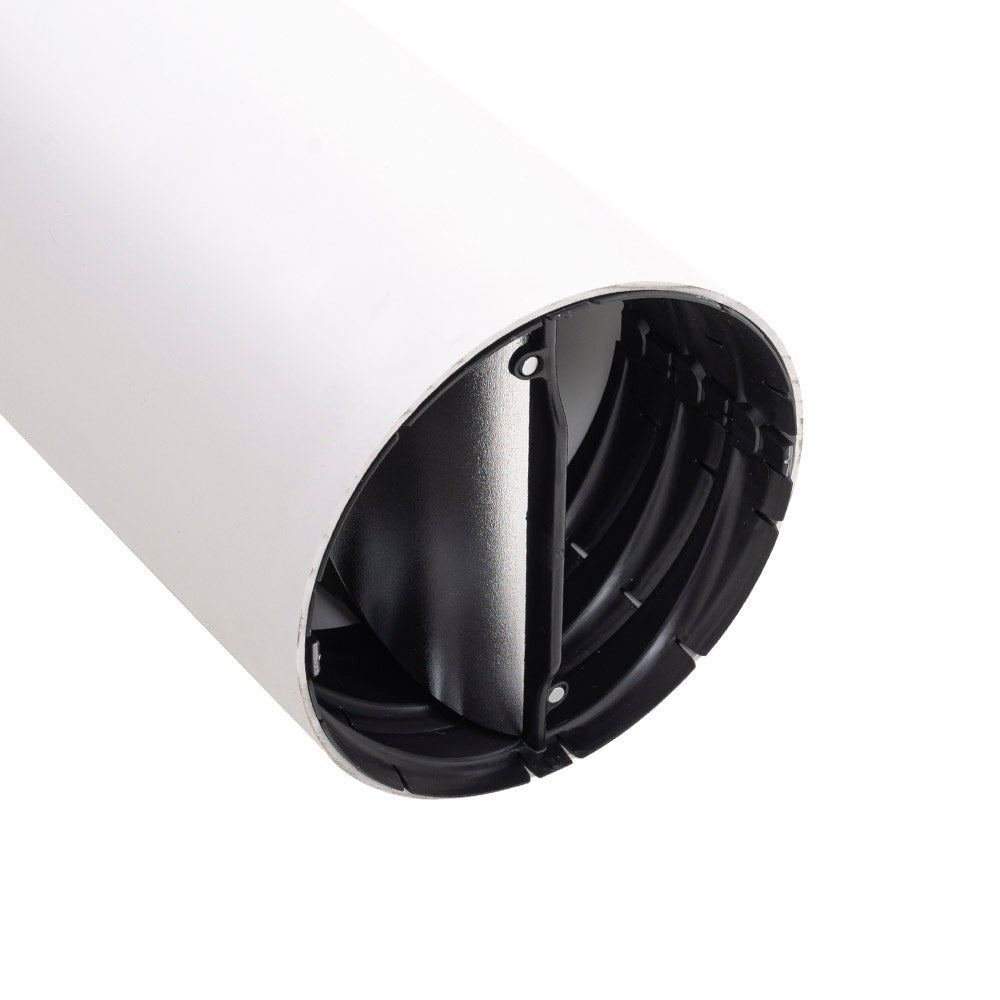

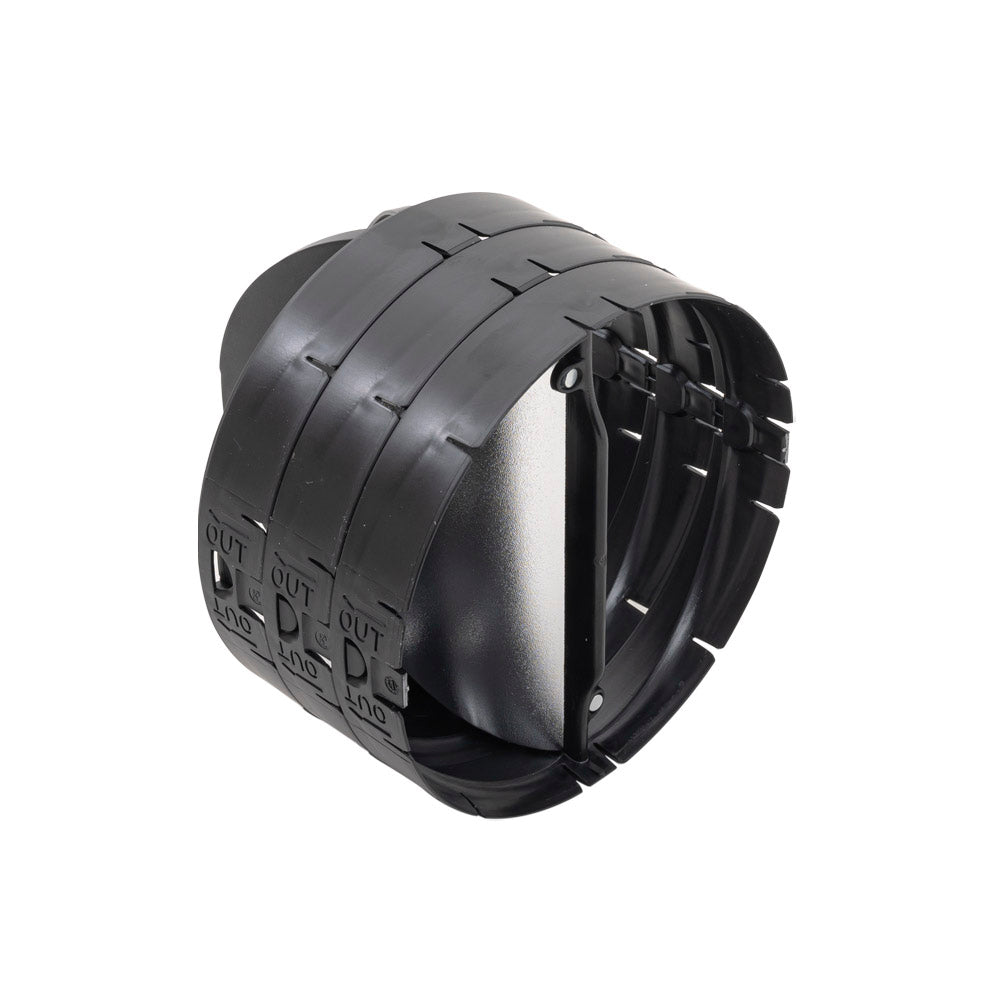

The Thermobox® ShutterTec retention system uses three flaps arranged in sequence, sealed by magnets. When closed, the three flaps create two sealed air chambers within the cartridge body. Air is a poor heat conductor — trapping it in sealed chambers creates an insulating barrier that performs up to 20 times better than a standard wall vent. When the extractor is running, air pressure from the motor opens the flaps automatically. When the hood is switched off, the magnets pull the flaps closed, sealing the chambers and restoring the insulating barrier. No power, no sensors, no maintenance.

Key Benefits

For properties in exposed or windy locations, the Thermobox® also eliminates the noise of flapping vent covers and prevents cold air being pushed back into the kitchen by wind pressure — a common problem with single-flap wall vents that standard back-draught shutters cannot fully address.

*Please note - the 125mm/5" version will only fit within the semi-rigid ducting or the flexible duct and will not fit within the rigid pipe.

✓ Luxair Thermobox® multi-award-winning heat retention cartridge — insulates up to 20× better than a standard wall vent

✓ Fits 125mm (5") and 150mm (6") round ducting and wall vents — check product title for size before ordering

✓ ShutterTec three-flap magnet-sealed system — creates two sealed air chambers when closed; opens automatically under motor airflow pressure

✓ Eliminates heat loss through the wall duct when the hood is not in use — seals automatically when extractor is off

✓ Stops cold air and draughts entering through the wall vent — effective in exposed and windy properties

✓ Eliminates noisy flapping vent covers — magnet-sealed flaps close silently and stay closed against wind pressure

✓ Purely mechanical — no power, wiring or maintenance required

✓ Retrofittable — fits within existing ducting vent or round ducting tube without modification

✓ Compatible with all 125mm and 150mm ducting systems — Luxair push-fit and all standard ducting formats

✓ Fast UK despatch — express overnight service available

Choose your cooker hood with confidence

Drawing on 25 years of Luxair experience, our cooker hood buying guide helps you compare hood styles, plan your ventilation and choose the right extraction for your kitchen.

  • Compare ceiling, wall, island and built-in hoods, downdrafts and extractor hobs.
  • Understand ducted and recirculating options, external motors, filters and ducting.
  • Check sizing, extraction rates and noise levels before you buy.
  • Explore our site survey and installation services.

Always check this product’s specifications and installation manual for compatible options and fitting requirements.

Read the cooker hood buying guide

Automatic Airtight Wall Vent

Luxair Automatic Airtight Wall Vent

125mm (5") and 150mm (6")

The Luxair Automatic Airtight Wall Vent seals shut automatically when your extractor fan is switched off, preventing warm air from escaping through the wall duct and cold air from entering. It operates entirely by air pressure when the extractor runs, the pressure opens the vent; when the extractor stops, low-maintenance springs return the vent to the sealed position. No electricity, no sensors, no maintenance beyond occasional cleaning.
