220mm x 90mm (6") 90° Horizontal Elbow

  • Fire resistant - Mould resistant - Recyclable

  • In stock
  • Backordered, shipping soon
Regular price£17.95
Total for selected quantity
/
Ex VAT: £14.96
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • Pyramid - 60cm to 110cm Wall Mounted Cooker Hood
    1 × Pyramid - 60cm to 110cm Wall Mounted Cooker Hood — Ivory-Cream / 60cm
Basket total£169.15

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
220mm x 90mm (6") 90° Horizontal Elbow
£17.95

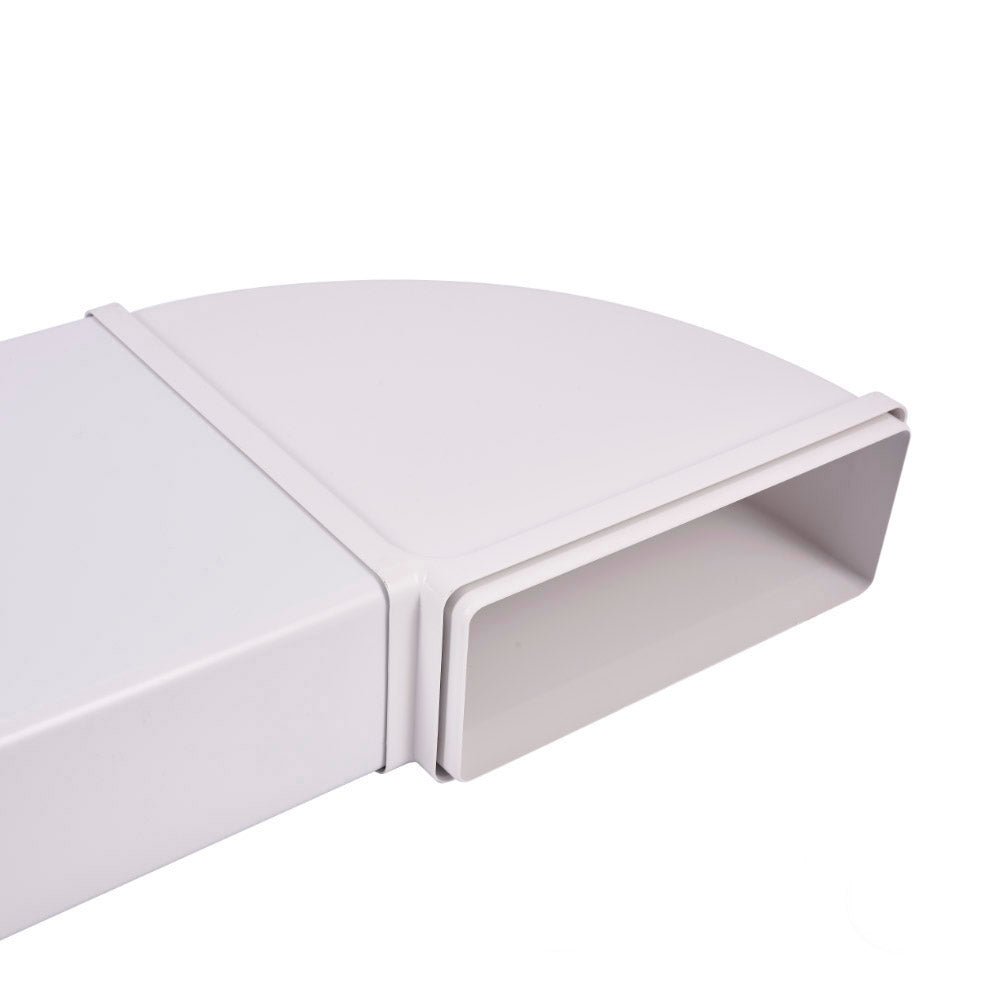

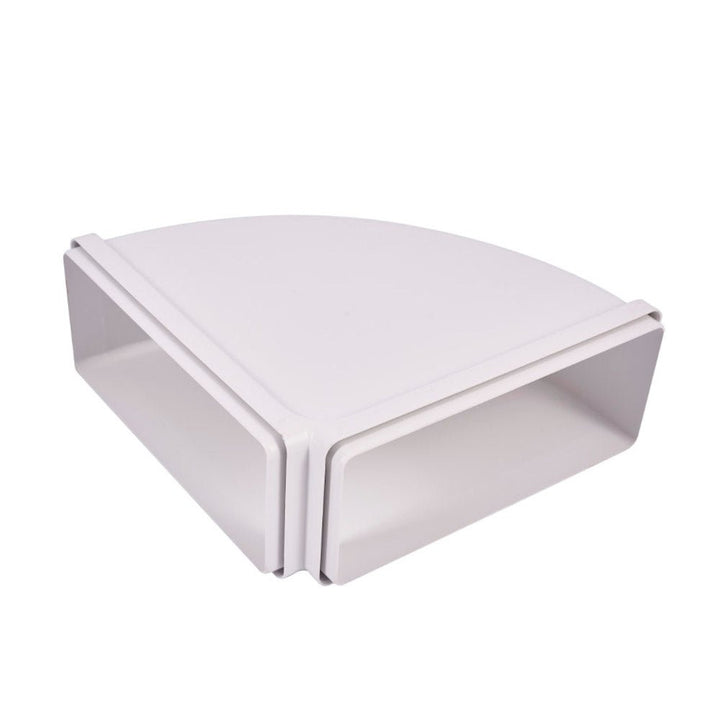

220mm × 90mm Flat Ducting — Horizontal 90° Elbow

This elbow connects two 220mm × 90mm flat rectangular ducting sections at a horizontal right angle, routing the duct run smoothly through a 90° corner in the horizontal plane without restricting airflow. It is part of the Luxair System150 6" push-fit airtight ducting range.

Where This Component Is Used

Use this elbow where a flat rectangular duct run needs to change direction horizontally — typically where the duct turns a corner along a wall at the same height, such as running along the top of kitchen wall units and turning a room corner, or where a duct run follows the perimeter of a room and changes direction within a ceiling soffit or above a bulkhead. The horizontal elbow keeps the duct run at a consistent height throughout the turn, whereas the vertical elbow changes the height of the run.

45° Alternative for Better Airflow

Where the installation permits, using two 220mm × 90mm 45° vertical elbows in combination achieves the same effective direction change as a single 90° elbow with significantly less airflow resistance and back-pressure. If extraction performance is a priority and space allows, the two-elbow approach is the preferred solution.

Ducting Size Guide

Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:

  • Below 450m³/hr → 100mm (4") ducting
  • 450–750m³/hr → 125mm (5") or 150mm (6") ducting
  • 750–2,000m³/hr → 150mm (6") or 200mm (8") ducting

The System150 6" Ducting Range

This component is part of the Luxair System150 range — combining 220mm × 90mm flat rectangular ducting and 150mm round ducting, both carrying equivalent airflow rates and fully interchangeable within the system. All components connect by push-fit for a patent-protected airtight seal with no ducting tape, adhesive, or clips required. The full range includes straight pipe sections, bends, elbows, connectors, adapters, and wall vents to complete any standard extraction installation.

✓ 220mm × 90mm flat ducting horizontal 90° elbow — connects two flat rectangular duct sections at a horizontal right angle corner

✓ Keeps duct run at consistent height throughout the turn — horizontal plane direction change only; use the vertical elbow where height change is needed

✓ Consider two 45° elbows for better airflow — achieves the same direction change with less turbulence and back-pressure where space allows

✓ Patent-protected push-fit airtight seal — no ducting tape, adhesive or clips required

✓ Part of the Luxair System150 6" push-fit airtight ducting range — fully compatible with all 220×90mm flat and 150mm round components

✓ Suitable for kitchen, bathroom, utility room and whole-house extract systems

✓ Fast UK despatch — express overnight service available
