220mm x 90mm Flexible Ducting Rubber Boot

  • Fire resistant - Mould resistant - Recyclable

  • In stock
  • Backordered, shipping soon
Regular price£38.95
Total for selected quantity
/
Ex VAT: £32.46
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • Pyramid - 60cm to 110cm Wall Mounted Cooker Hood
    1 × Pyramid - 60cm to 110cm Wall Mounted Cooker Hood — Ivory-Cream / 60cm
Basket total£169.15

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
220mm x 90mm Flexible Ducting Rubber Boot
£38.95

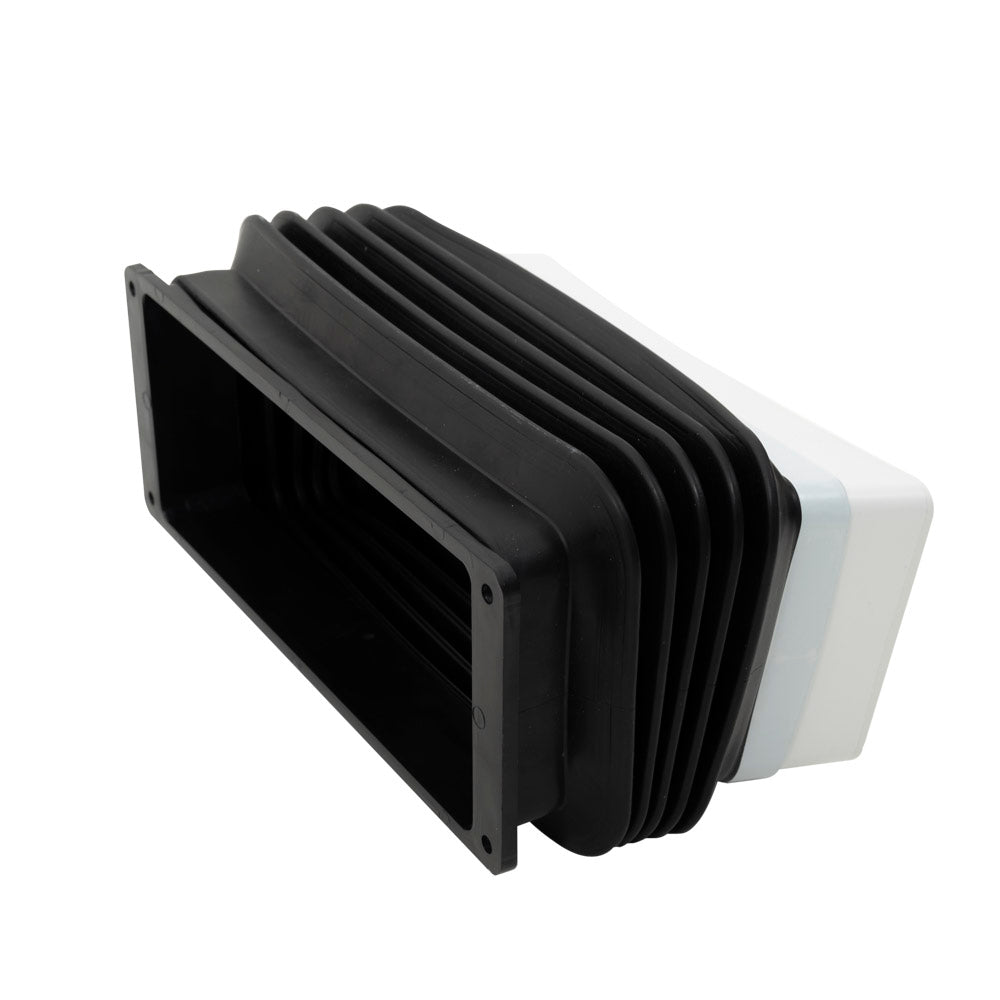

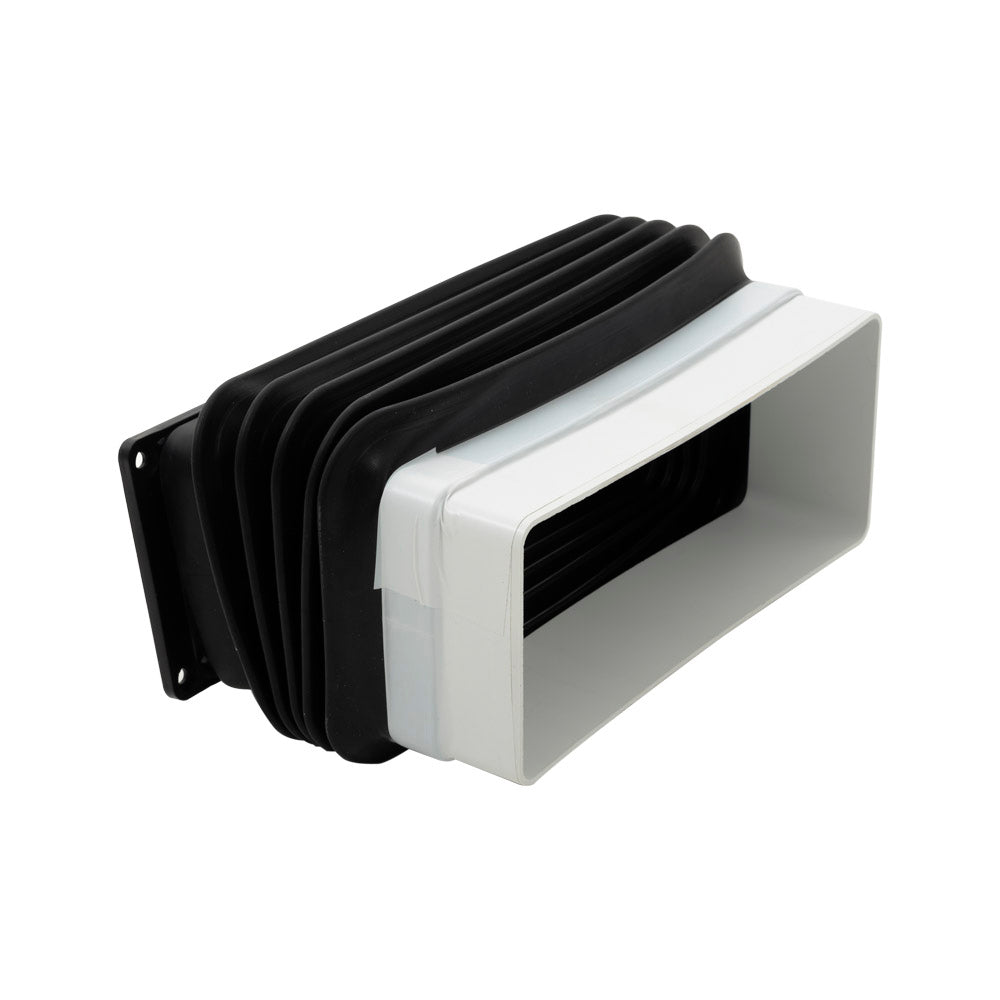

220mm × 90mm Flexible Ducting Rubber Boot Adjustable 30° to 90°

Don't bend it Flex It

The 220mm × 90mm rubber ducting boot is the solution for installation scenarios where a standard rigid 45° or 90° elbow won't work. Where the duct run needs to navigate around a pipe, joist, cable, beam, or other obstruction in a tight ceiling void — and where the exact angle required isn't a standard 45° or 90° — this flexible rubber boot adjusts to any angle between 30° and 90° for a precise custom fit on site.

Where This Component Is Used

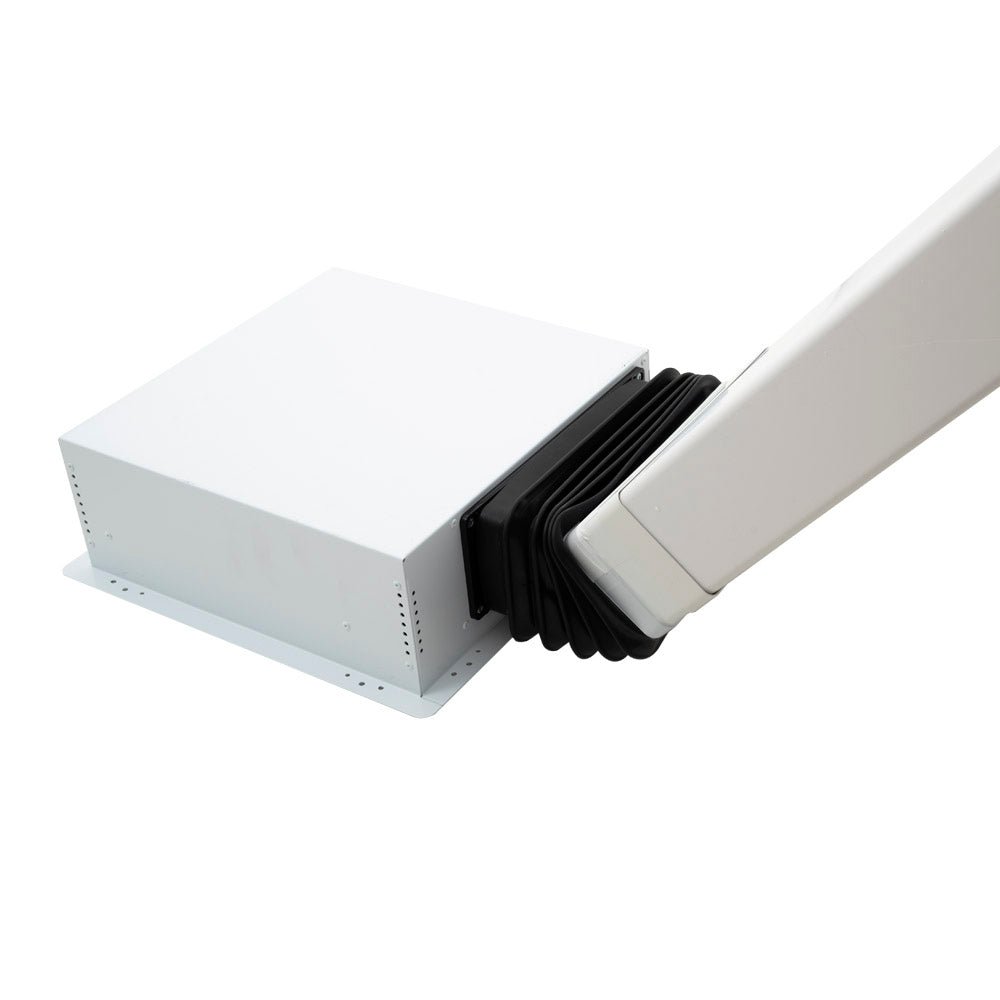

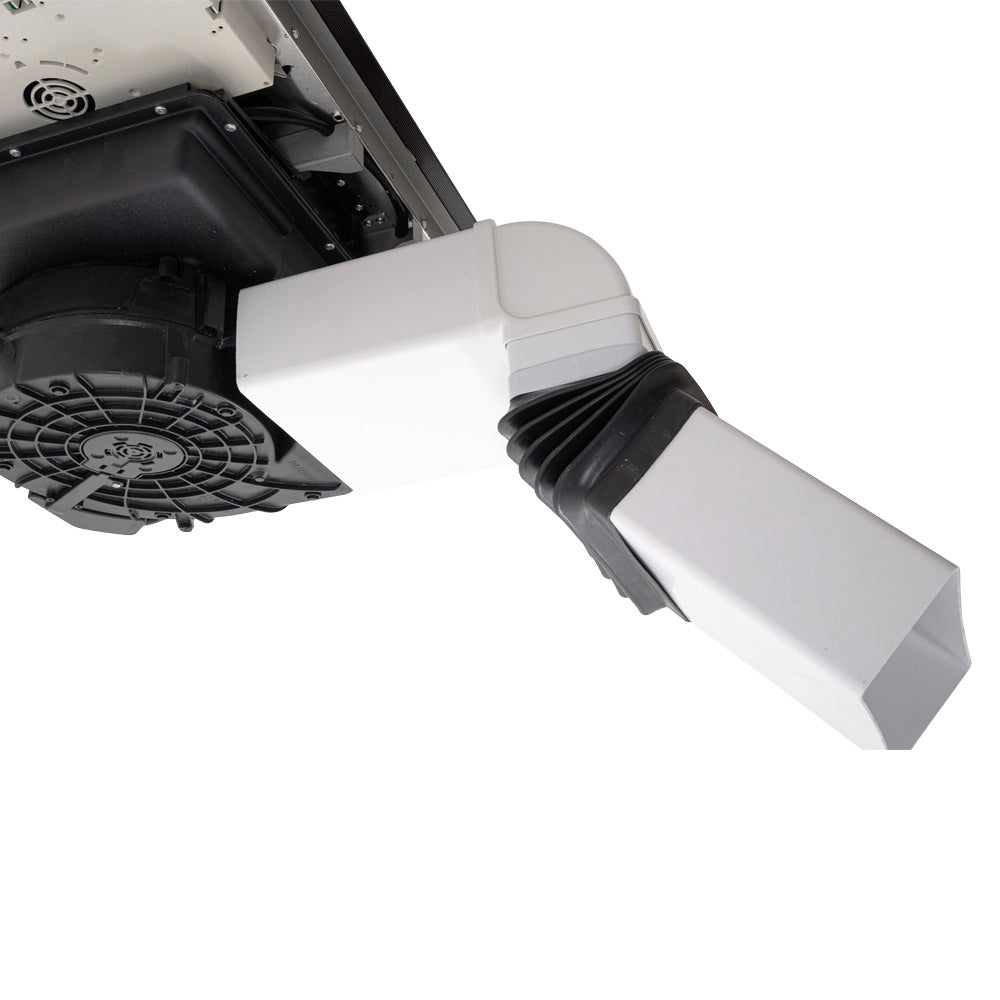

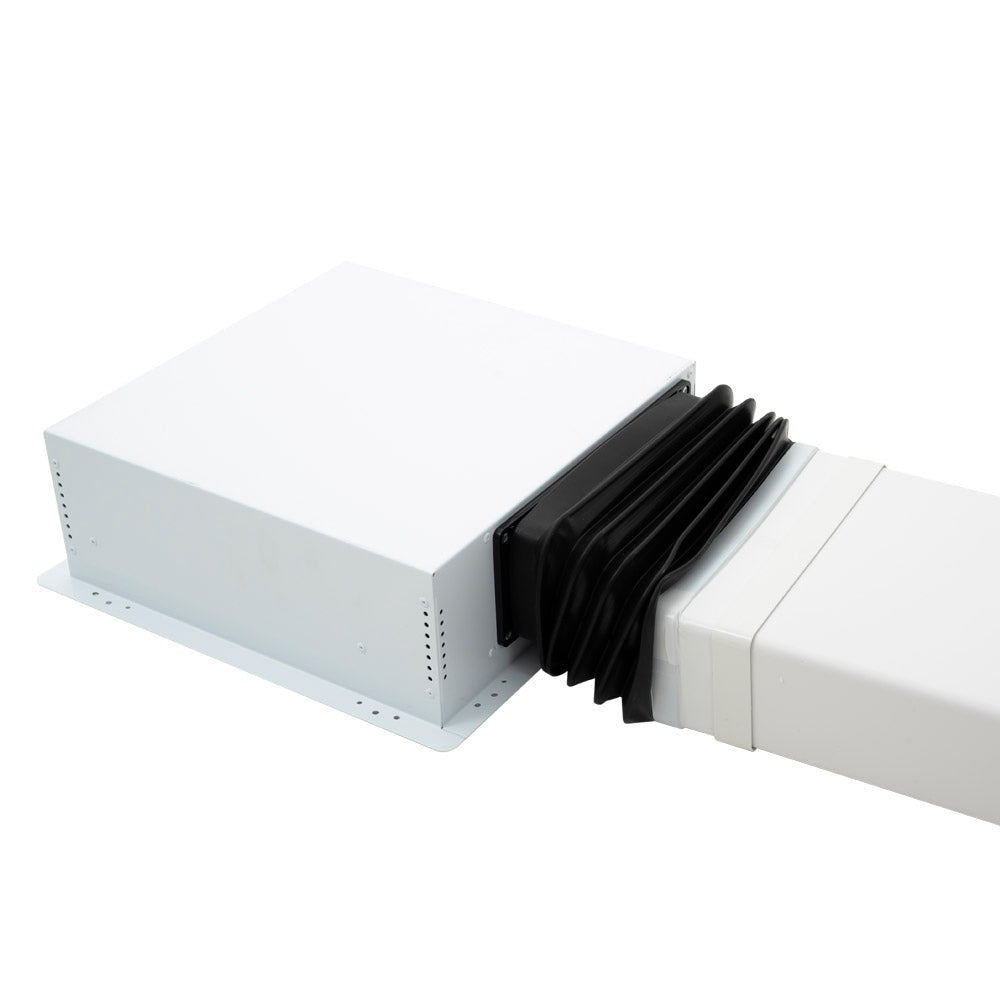

This boot is particularly suited to ceiling cooker hood installations where the slimline flat motor outlet needs to transition into the duct run in a restricted ceiling void with limited clearance. It also provides 10mm of lateral adjustment left or right — useful where the motor outlet and the duct run are not perfectly aligned, as is common with slimline motor housings in tight joist spaces where positional accuracy is difficult to achieve.

Why Rubber vs Rigid Plastic

Unlike rigid plastic elbow connectors, the rubber boot absorbs motor vibration at the connection point — preventing vibration noise from being transmitted through the duct into the ceiling structure. On ceiling extractor installations where the motor is within the ceiling void, this vibration isolation is a meaningful improvement in the quietness of the overall installation. Multiple boots can be combined along the same duct run for maximum flexibility throughout.

Fitting Note

The rubber boot uses a tight-fit female connection for a secure hold. Ducting tape is recommended at the connection points for additional security and to ensure an airtight seal — unlike the push-fit components in the System150 range, this boot relies on the tape to complete the seal.

Ducting Size Guide

Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:

  • Below 450m³/hr → 100mm (4") ducting
  • 450–750m³/hr → 125mm (5") or 150mm (6") ducting
  • 750–2,000m³/hr → 150mm (6") or 200mm (8") ducting

The System150 6" Ducting Range

This boot is compatible with the Luxair System150 220mm × 90mm flat ducting range. The full System150 range includes rigid straight pipe sections, elbows, connectors, adapters, and wall vents — use rigid components wherever possible and the rubber boot where rigid components cannot be fitted.

✓ 220mm × 90mm flexible rubber ducting boot — adjustable to any angle between 30° and 90° for a custom fit on site

✓ 10mm lateral adjustment — left or right, accommodating misalignment between motor outlet and duct run

✓ Vibration-free connection — rubber construction absorbs motor vibration, reducing noise transmission through ceiling structure

✓ Ideal for tight ceiling void installations — navigates around joists, pipes, beams and cables where rigid elbows cannot fit

✓ Multiple boots can be combined — use several along the same duct run for maximum flexibility throughout

✓ Tight-fit female connection — secure hold; add ducting tape at connection points for airtight seal

✓ Compatible with 220mm × 90mm flat System150 ducting — use where rigid components cannot be fitted

✓ Suitable for ceiling cooker hood installations with slimline flat radial motor housings

✓ Fast UK despatch — express overnight service available

Choose your cooker hood with confidence

Drawing on 25 years of Luxair experience, our cooker hood buying guide helps you compare hood styles, plan your ventilation and choose the right extraction for your kitchen.

  • Compare ceiling, wall, island and built-in hoods, downdrafts and extractor hobs.
  • Understand ducted and recirculating options, external motors, filters and ducting.
  • Check sizing, extraction rates and noise levels before you buy.
  • Explore our site survey and installation services.

Always check this product’s specifications and installation manual for compatible options and fitting requirements.

Read the cooker hood buying guide

Automatic Airtight Wall Vent

Luxair Automatic Airtight Wall Vent

125mm (5") and 150mm (6")

The Luxair Automatic Airtight Wall Vent seals shut automatically when your extractor fan is switched off, preventing warm air from escaping through the wall duct and cold air from entering. It operates entirely by air pressure when the extractor runs, the pressure opens the vent; when the extractor stops, low-maintenance springs return the vent to the sealed position. No electricity, no sensors, no maintenance beyond occasional cleaning.
