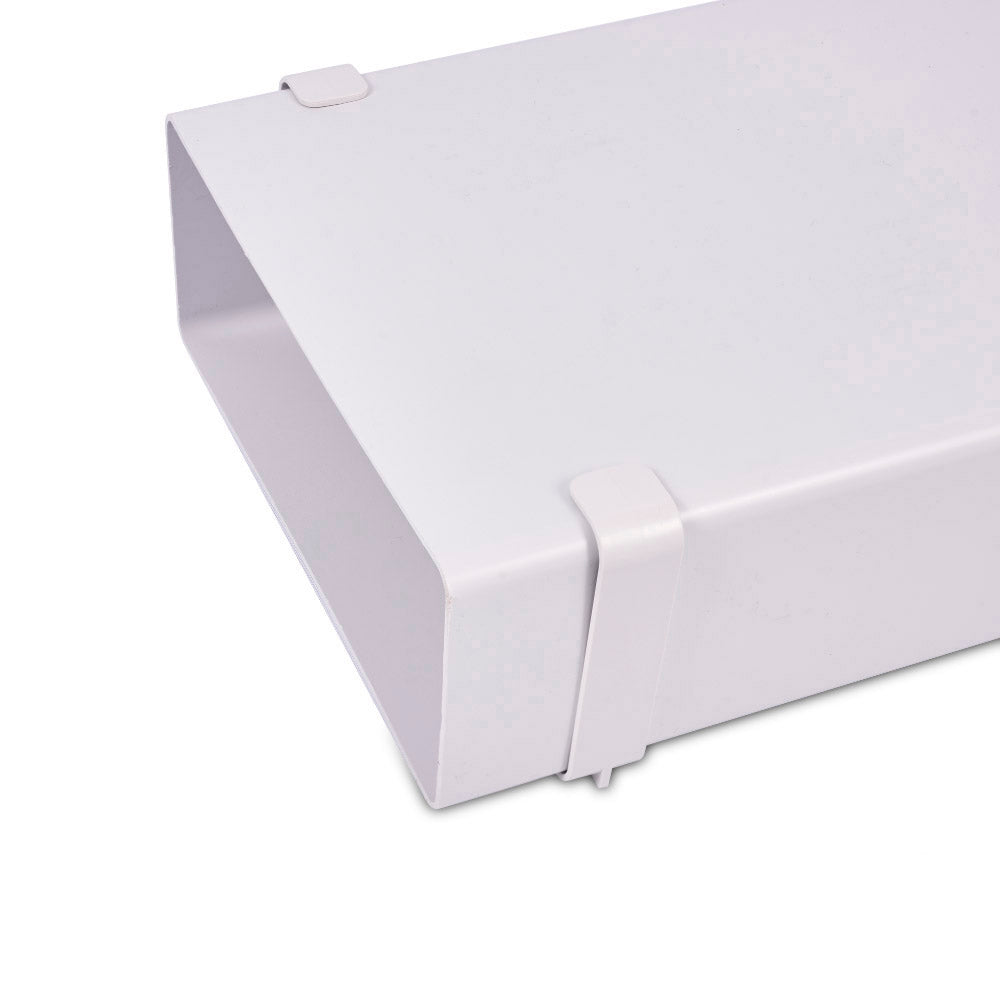

125mm (5") Rectangular Flat Pipe Connector

  • Fire resistant - Mould resistant - Recyclable

  • In stock
  • Backordered, shipping soon
Regular price£6.95
Total for selected quantity
/
Ex VAT: £5.79
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • Pyramid - 60cm to 110cm Wall Mounted Cooker Hood
    1 × Pyramid - 60cm to 110cm Wall Mounted Cooker Hood — Ivory-Cream / 60cm
Basket total£169.15

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
125mm (5") Rectangular Flat Pipe Connector
£6.95

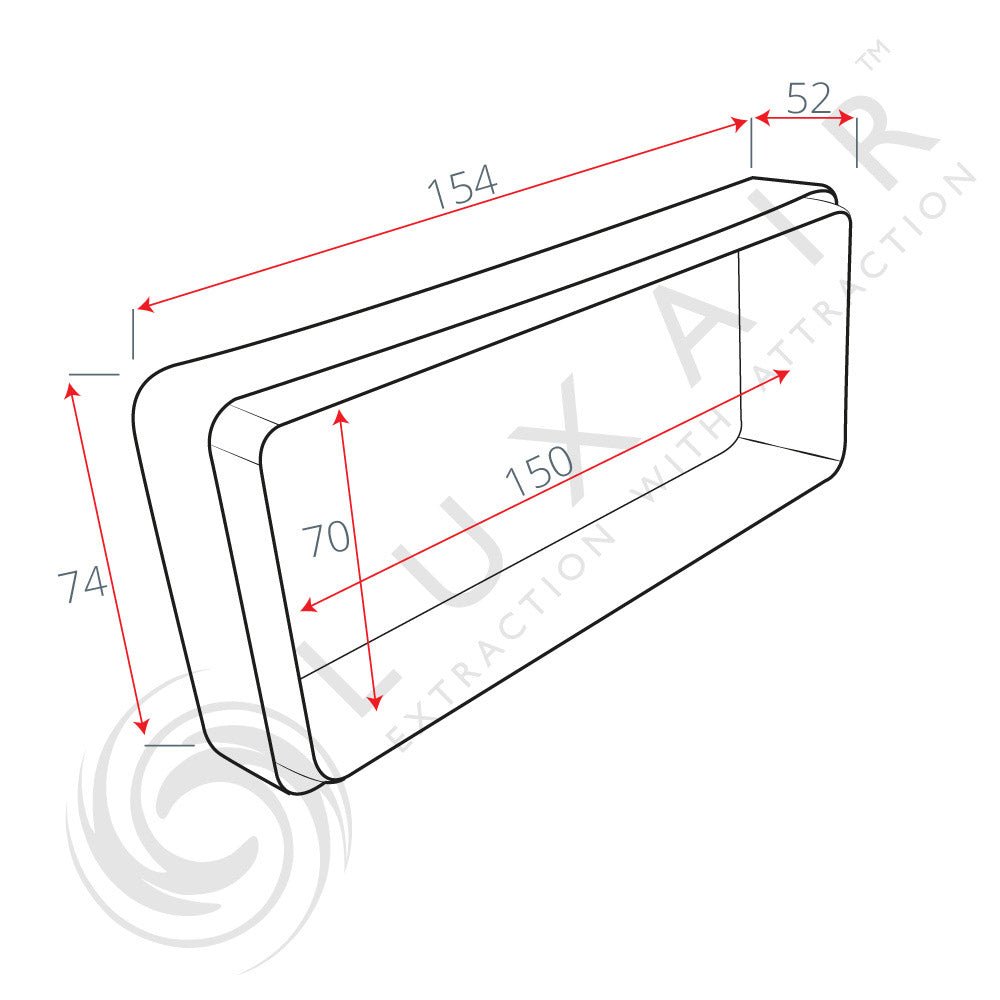

150mm × 70mm Flat Ducting Straight Connector

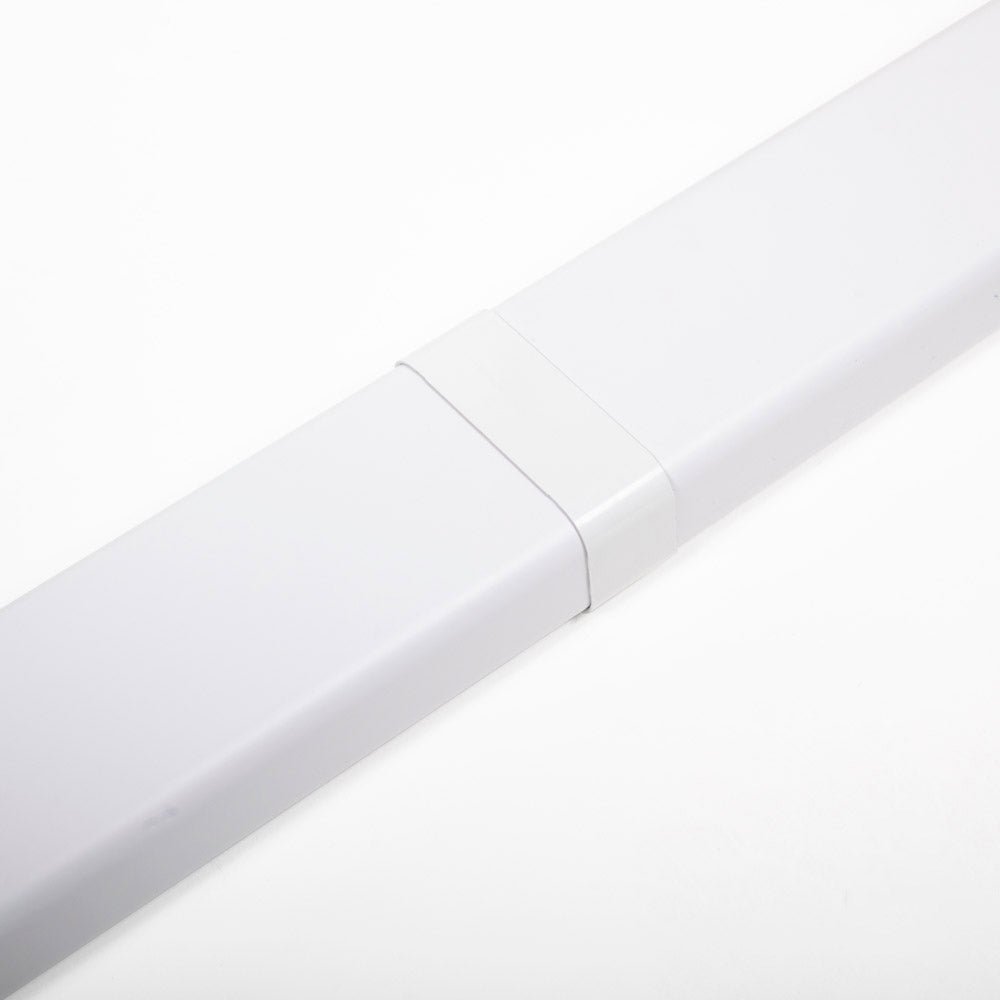

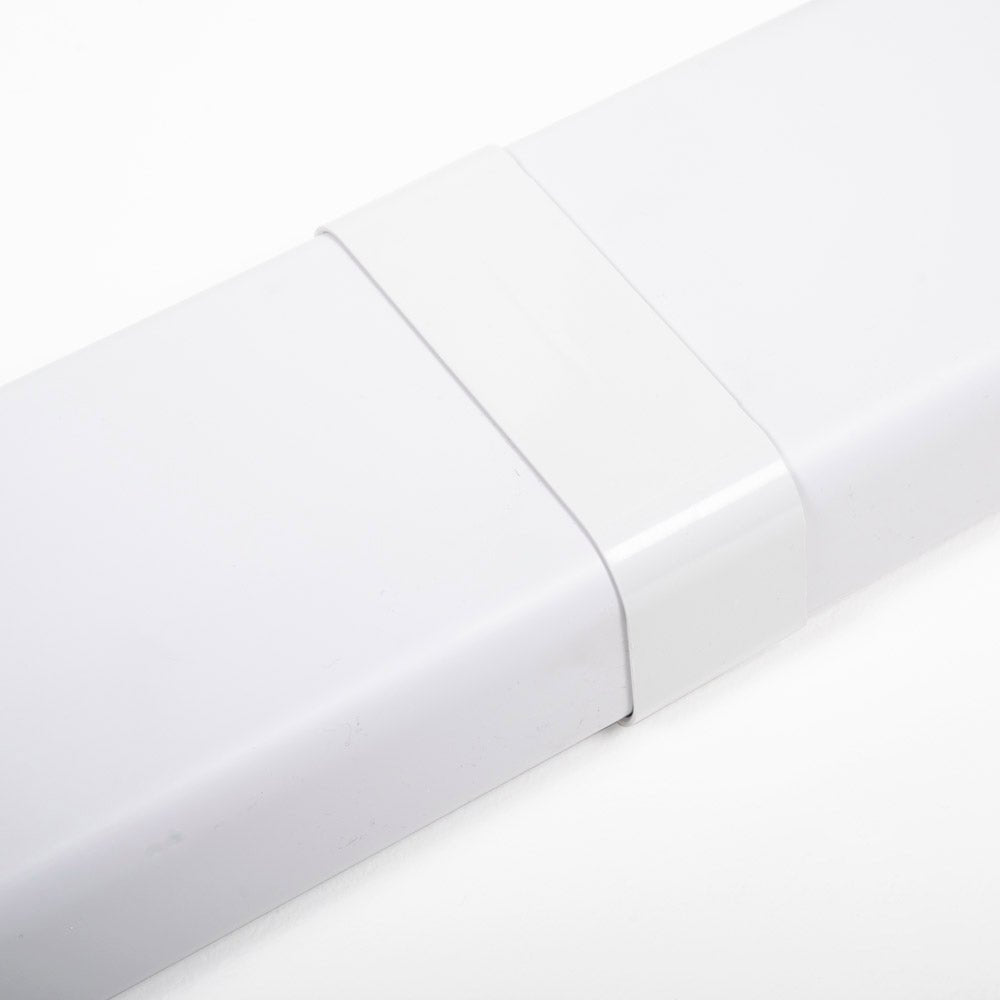

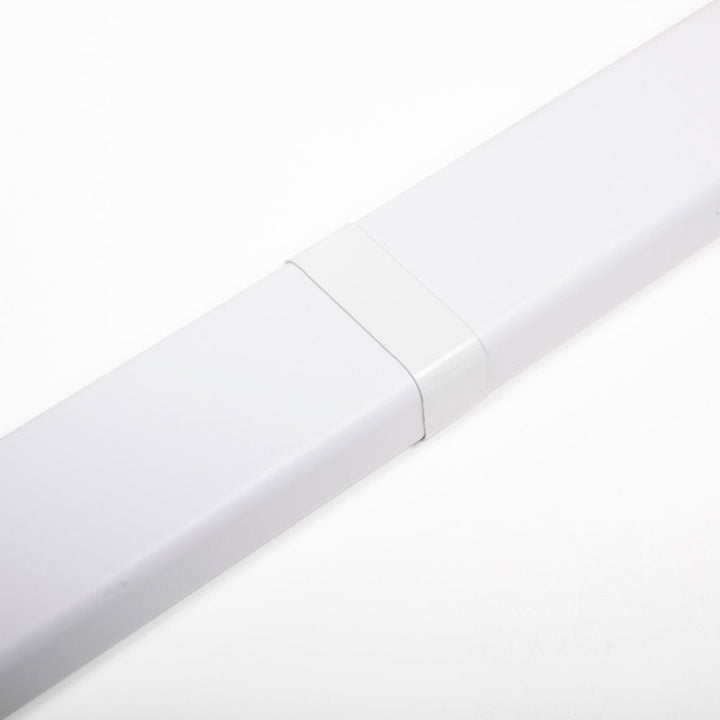

This connector joins two 150mm × 70mm flat rectangular ducting sections together on a straight duct run, extending the run beyond a single pipe length. It is part of the Luxair 5" push-fit airtight ducting system.

Important — Use Pipe Clips Either Side of Each Joint

On longer duct runs of one metre or more, pipe clips must be fitted either side of each connector joint to prevent the ducting from sagging under its own weight. Sagging joints can break the airtight seal and reduce extraction performance. See the 150mm × 70mm flat ducting pipe clips in the Luxair ducting range.

Ducting Size Guide

Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:

  • Below 450m³/hr → 100mm (4") ducting
  • 450–750m³/hr → 125mm (5") or 150mm (6") ducting
  • 750–2,000m³/hr → 150mm (6") or 200mm (8") ducting

The 5" Push-Fit System

This component is part of the Luxair 125mm (5") push-fit airtight ducting range. The system combines 150mm × 70mm flat rectangular ducting and 125mm round ducting — both formats carry equivalent airflow rates and are fully interchangeable within the system. All components connect by push-fit for a patent-protected airtight seal with no ducting tape, adhesive, or clips required at joints. The full range includes straight pipe sections, bends, elbows, adapters, and wall outlets to complete any standard ducting installation.

✓ 150mm × 70mm flat ducting straight connector — joins two flat rectangular duct sections on a continuous straight run

✓ Patent-protected push-fit airtight seal — no ducting tape, adhesive or clips required at the joint itself

✓ Use pipe clips either side of each joint on runs of 1 metre or more — prevents sagging and maintains airtight seal throughout

✓ Part of the Luxair 5" (125mm) push-fit airtight ducting system — fully compatible with all bends, elbows, adapters and outlets in the range

✓ Suitable for kitchen, bathroom, utility room and whole-house extract systems

✓ Fast UK despatch — express overnight service available

Choose your cooker hood with confidence

Drawing on 25 years of Luxair experience, our cooker hood buying guide helps you compare hood styles, plan your ventilation and choose the right extraction for your kitchen.

  • Compare ceiling, wall, island and built-in hoods, downdrafts and extractor hobs.
  • Understand ducted and recirculating options, external motors, filters and ducting.
  • Check sizing, extraction rates and noise levels before you buy.
  • Explore our site survey and installation services.

Always check this product’s specifications and installation manual for compatible options and fitting requirements.

Read the cooker hood buying guide

Automatic Airtight Wall Vent

Luxair Automatic Airtight Wall Vent

125mm (5") and 150mm (6")

The Luxair Automatic Airtight Wall Vent seals shut automatically when your extractor fan is switched off, preventing warm air from escaping through the wall duct and cold air from entering. It operates entirely by air pressure when the extractor runs, the pressure opens the vent; when the extractor stops, low-maintenance springs return the vent to the sealed position. No electricity, no sensors, no maintenance beyond occasional cleaning.

Automatic Airtight Wall Vent Showcase
