220mm x 90mm (6") 45° Vertical Ducting Elbow

  • Fire resistant - Mould resistant - Recyclable

  • In stock
  • Backordered, shipping soon
Regular price£18.95
Total for selected quantity
/
Ex VAT: £15.79
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • Pyramid - 60cm to 110cm Wall Mounted Cooker Hood
    1 × Pyramid - 60cm to 110cm Wall Mounted Cooker Hood — Ivory-Cream / 60cm
Basket total£169.15

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
220mm x 90mm (6") 45° Vertical Ducting Elbow
£18.95

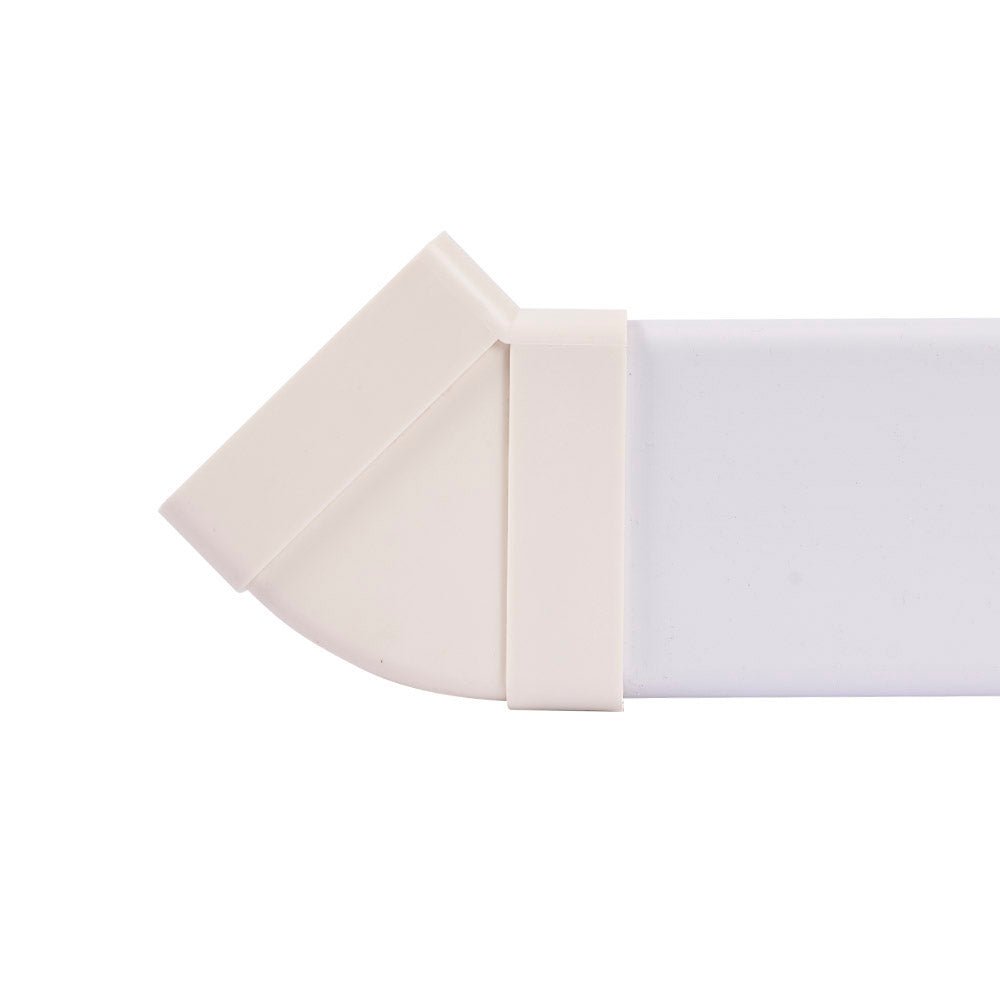

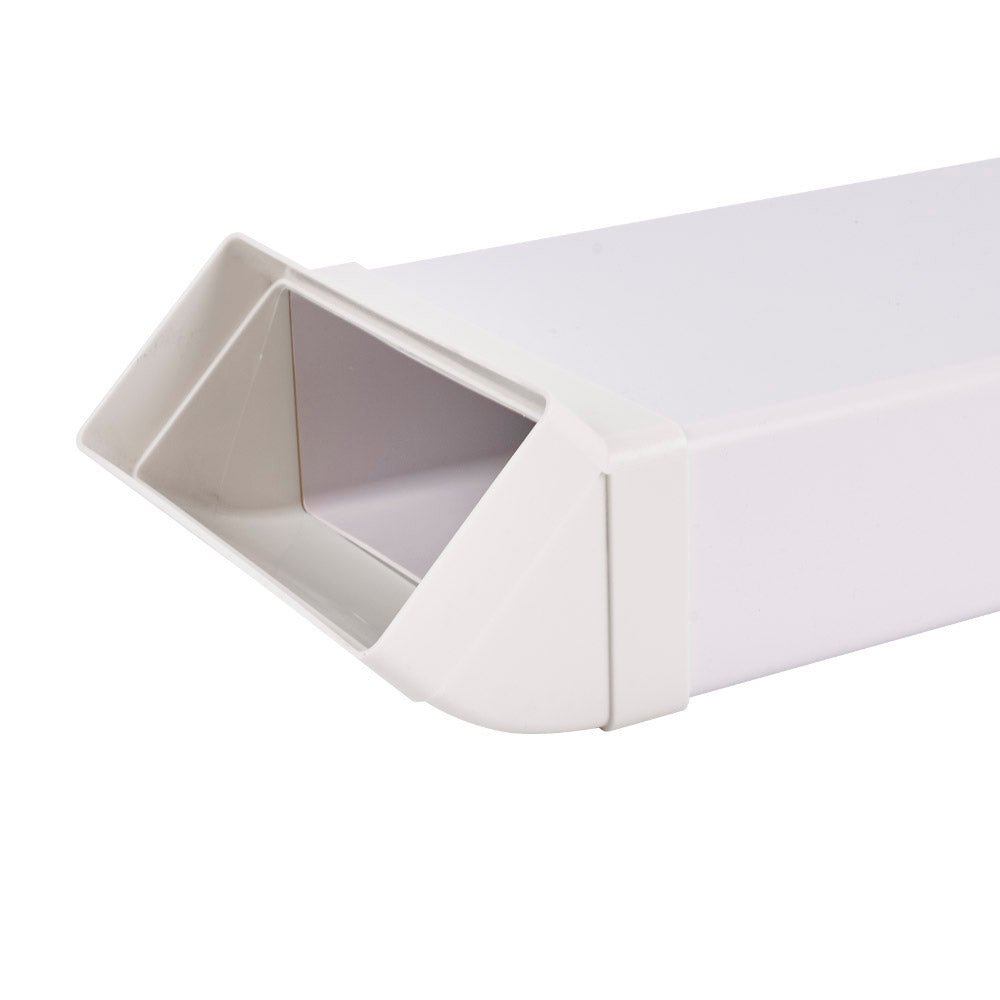

220mm × 90mm Flat Ducting — Vertical 45° Elbow

This elbow connects two 220mm × 90mm flat rectangular ducting sections at a vertical 45° angle, routing the duct run through a gentle direction change without restricting airflow. It is part of the Luxair System150 6" push-fit airtight ducting range.

45° vs 90° — When to Use Each

Where the installation allows, a 45° elbow is preferable to a 90° elbow — the gentler angle creates less turbulence and back-pressure in the airflow, maintaining better extraction efficiency through the bend. Use a 45° elbow where the duct run changes direction gradually, and a 90° elbow only where a sharp right-angle turn is unavoidable. Two 45° elbows can also be combined to achieve a 90° change in direction with significantly less airflow resistance than a single 90° elbow.

Where This Component Is Used

Use this elbow where a flat rectangular duct run needs to change direction vertically at a 45° angle — typically where a duct run drops down from a ceiling void at an angle, transitions over an obstacle, or where a gradual vertical direction change is needed within a run above kitchen units or within a bulkhead.

Ducting Size Guide

Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:

  • Below 450m³/hr → 100mm (4") ducting
  • 450–750m³/hr → 125mm (5") or 150mm (6") ducting
  • 750–2,000m³/hr → 150mm (6") or 200mm (8") ducting

The System150 6" Ducting Range

This component is part of the Luxair System150 range — combining 220mm × 90mm flat rectangular ducting and 150mm round ducting, both carrying equivalent airflow rates and fully interchangeable within the system. All components connect by push-fit for a patent-protected airtight seal with no ducting tape, adhesive, or clips required. The full range includes straight pipe sections, bends, elbows, connectors, adapters, and wall vents to complete any standard extraction installation.

✓ 220mm × 90mm flat ducting vertical 45° elbow — connects two flat rectangular duct sections at a gentle 45° vertical angle

✓ Lower airflow resistance than a 90° elbow — gentler angle reduces turbulence and back-pressure through the bend

✓ Two 45° elbows can replace one 90° elbow — achieving the same direction change with significantly less restriction

✓ Patent-protected push-fit airtight seal — no ducting tape, adhesive or clips required

✓ Part of the Luxair System150 6" push-fit airtight ducting range — fully compatible with all 220×90mm flat and 150mm round components

✓ Suitable for kitchen, bathroom, utility room and whole-house extract systems

✓ Fast UK despatch — express overnight service available
