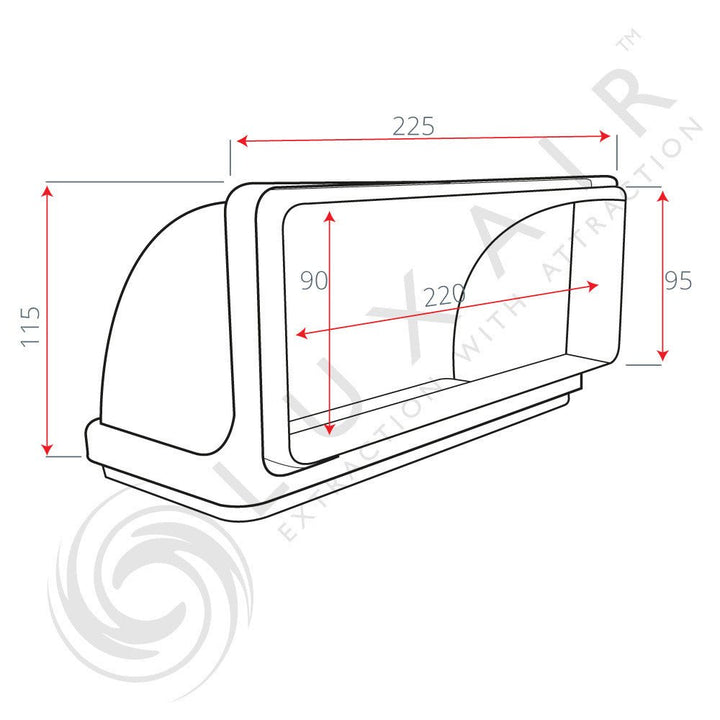

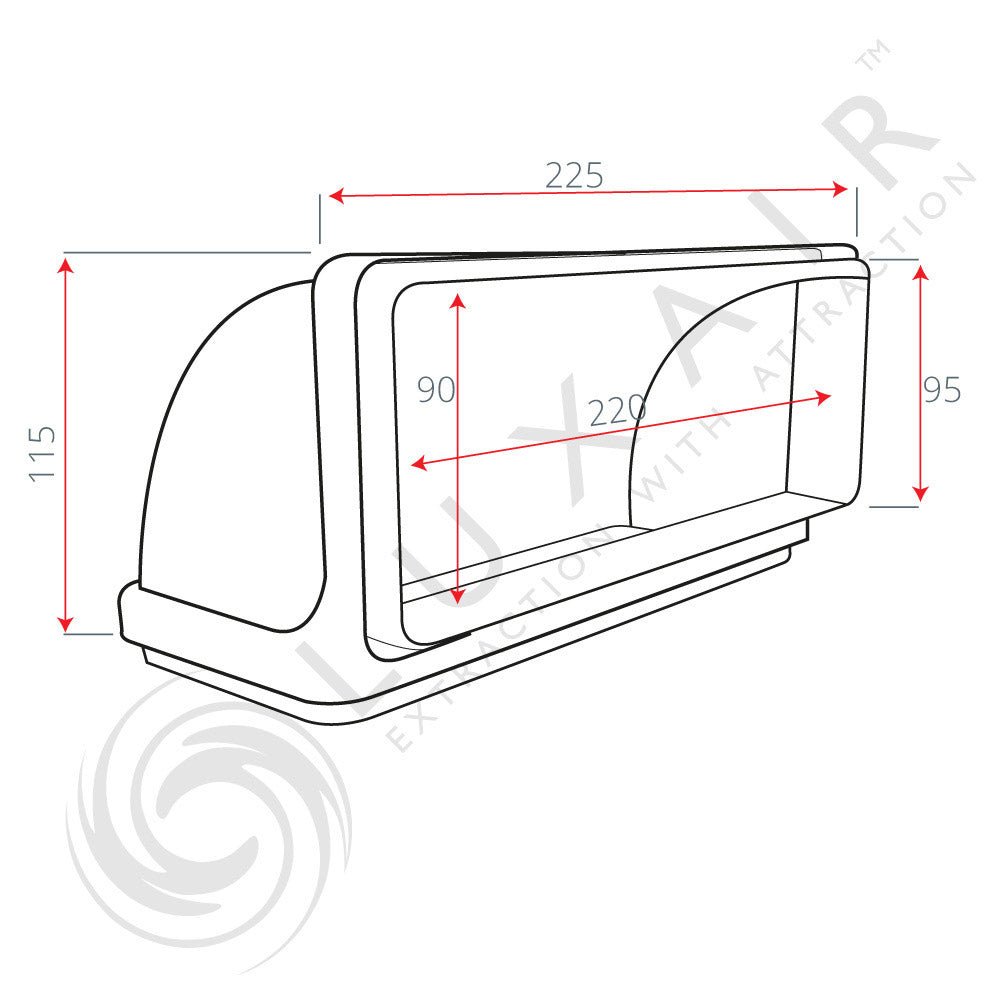

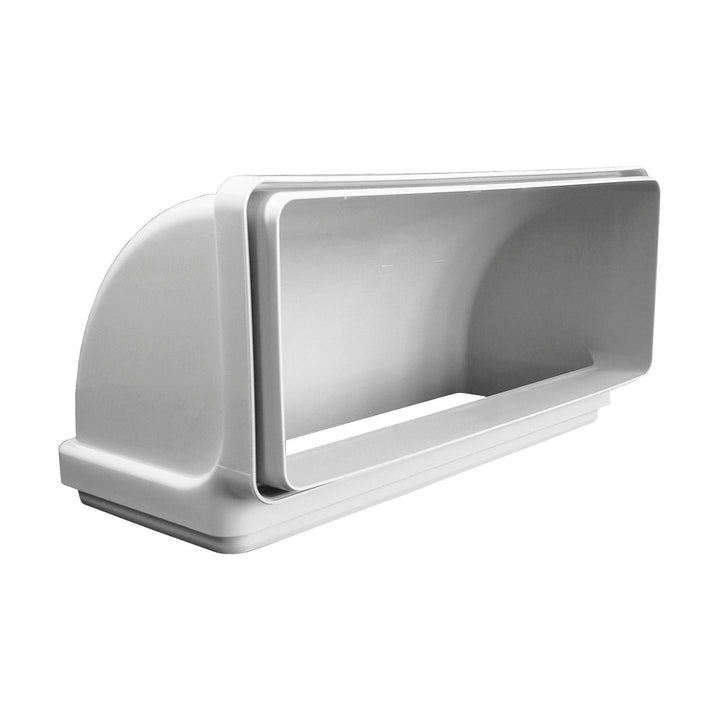

This elbow connects two 220mm × 90mm flat rectangular ducting sections at a vertical right angle, routing the duct run smoothly through a 90° corner in the vertical plane without restricting airflow. It is part of the Luxair System150 6" push-fit airtight ducting range.
Use this elbow where a flat rectangular duct run needs to change direction vertically — typically where the duct leaves the hood body and turns to run horizontally along a wall or into a ceiling void, or where a horizontal run drops down into a vertical section to connect to a wall vent or outlet. The vertical elbow changes the height of the duct run through the turn, whereas the horizontal elbow keeps the run at a consistent height throughout the corner.
Where the installation permits, using two 220mm × 90mm 45° vertical elbows in combination achieves the same effective 90° direction change with significantly less airflow resistance and back-pressure than a single 90° elbow. If extraction performance is a priority and space allows, the two-elbow approach is the preferred solution.
Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:
This component is part of the Luxair System150 range — combining 220mm × 90mm flat rectangular ducting and 150mm round ducting, both carrying equivalent airflow rates and fully interchangeable within the system. All components connect by push-fit for a patent-protected airtight seal with no ducting tape, adhesive, or clips required. The full range includes straight pipe sections, bends, elbows, connectors, adapters, and wall vents to complete any standard extraction installation.
✓ 220mm × 90mm flat ducting vertical 90° elbow — connects two flat rectangular duct sections at a vertical right angle corner
✓ Changes height of duct run through the turn — use the horizontal elbow where the run needs to stay at a consistent height
✓ Consider two 45° elbows for better airflow — achieves the same direction change with less turbulence and back-pressure where space allows
✓ Patent-protected push-fit airtight seal — no ducting tape, adhesive or clips required
✓ Part of the Luxair System150 6" push-fit airtight ducting range — fully compatible with all 220×90mm flat and 150mm round components
✓ Suitable for kitchen, bathroom, utility room and whole-house extract systems
✓ Fast UK despatch — express overnight service available
