150mm x 70mm (5") 90° Horizontal Ducting Bend Elbow

  • Fire resistant - Mould resistant - Recyclable

  • In stock
  • Backordered, shipping soon
Regular price£10.95
Total for selected quantity
/
Ex VAT: £9.13
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • Pyramid - 60cm to 110cm Wall Mounted Cooker Hood
    1 × Pyramid - 60cm to 110cm Wall Mounted Cooker Hood — Ivory-Cream / 60cm
Basket total£169.15

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
150mm x 70mm (5") 90° Horizontal Ducting Bend Elbow
£10.95

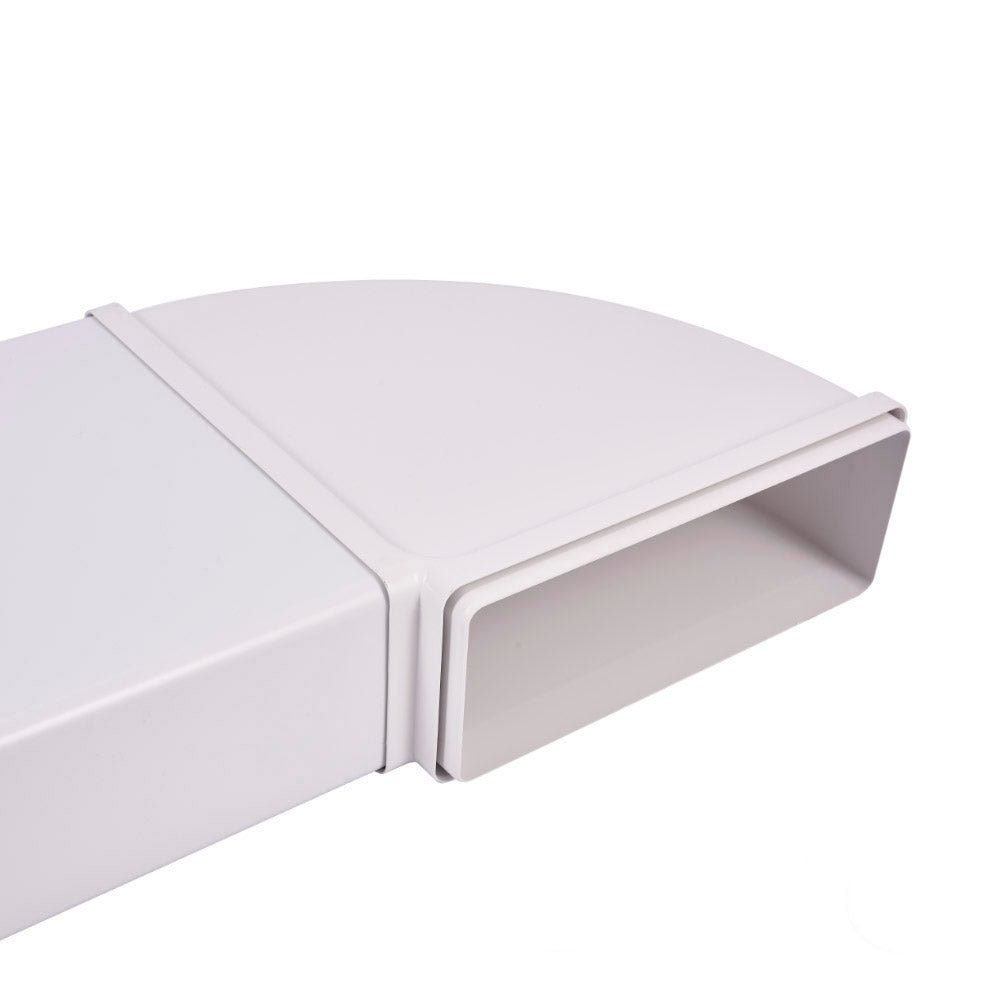

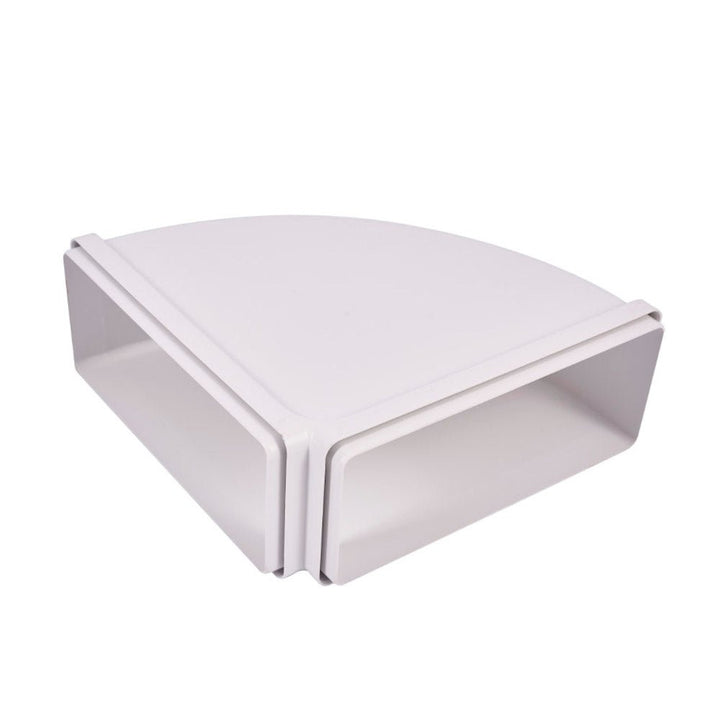

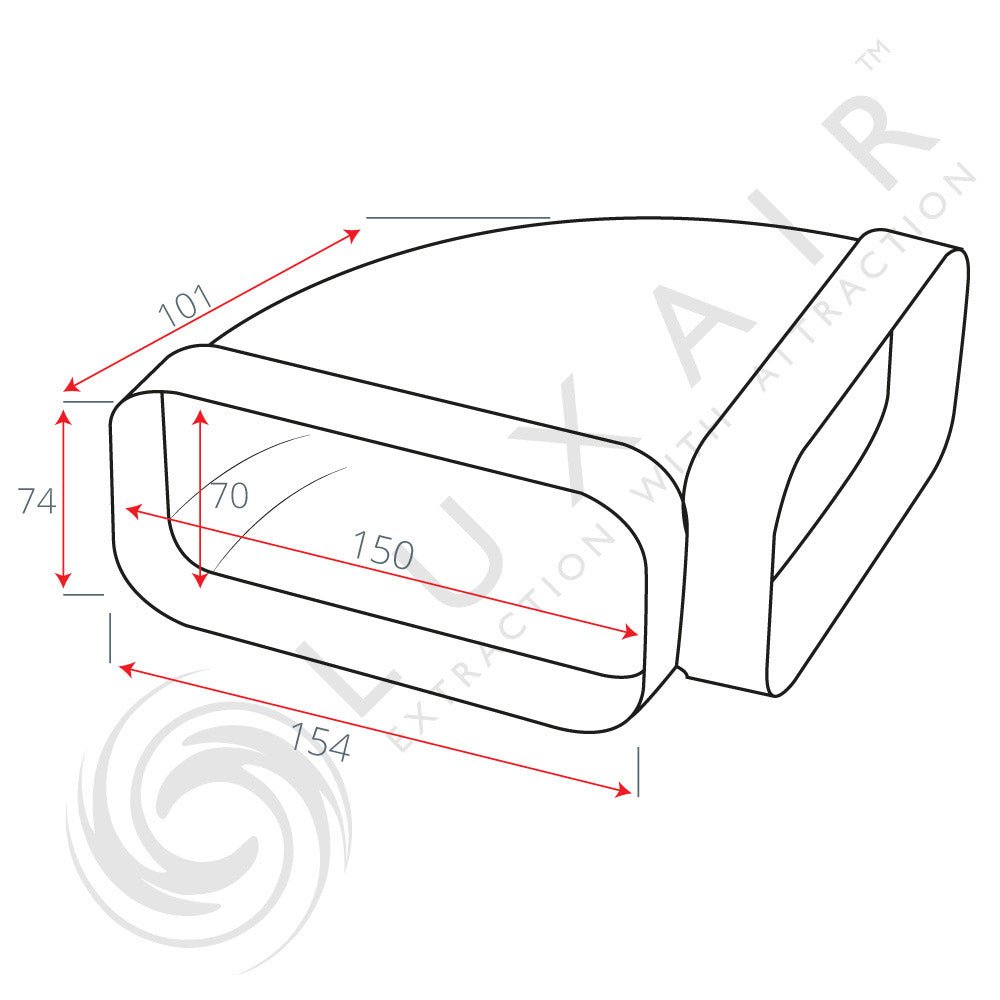

150mm × 70mm Flat Ducting — Horizontal 90° Elbow Bend

This elbow connects two 150mm × 70mm flat rectangular ducting sections at a horizontal right angle, routing the duct run smoothly through a 90° corner in the horizontal plane without restricting airflow. It is part of the Luxair 5" push-fit airtight ducting system.

Where This Component Is Used

Use this elbow where a flat rectangular duct run needs to change direction horizontally — typically where the duct turns a corner along a wall at the same height, such as running along the top of kitchen wall units and turning a room corner. The low-profile 150mm × 70mm dimensions allow the duct to be concealed easily in restricted spaces such as between wall units and ceiling soffits.

The 5" Push-Fit System

This component is part of the Luxair 125mm (5") push-fit airtight ducting range. The system combines 150mm × 70mm flat rectangular ducting and 125mm round ducting — both formats carry equivalent airflow rates and are fully interchangeable within the system. All components connect by push-fit for a patent-protected airtight seal with no ducting tape, adhesive, or clips required. Suitable for kitchen, bathroom, and utility room extract systems, as well as whole-house ventilation installations. The full range includes straight sections, bends, elbows, adapters, and wall outlets to complete any standard ducting installation.

Ducting Size Guide

Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:

  • Below 450m³/hr → 100mm (4") ducting
  • 450–750m³/hr → 125mm (5") or 150mm (6") ducting
  • 750–2,000m³/hr → 150mm (6") or 200mm (8") ducting

✓ 150mm × 70mm flat ducting horizontal 90° elbow — connects two flat rectangular duct sections at a horizontal right angle corner

✓ Smooth 90° horizontal bend — maintains consistent airflow through corners without restriction

✓ Low-profile 150mm × 70mm dimensions — conceals easily along wall unit runs and in restricted ceiling spaces

✓ Patent-protected push-fit airtight seal — no ducting tape, adhesive or clips required

✓ Part of the Luxair 5" (125mm) push-fit airtight ducting system — fully compatible with all other components in the range

✓ Suitable for kitchen, bathroom, utility room and whole-house extract systems

✓ Fast UK despatch — express overnight service available
