220×90mm Flat Ducting Pipe 200mm Short Section

  • Fire resistant - Mould resistant - Recyclable

  • Very Low stock - 10 items left
  • Backordered, shipping soon
Regular price£12.95
Total for selected quantity
/
Ex VAT: £10.79
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • 200mm to 150mm Reducer Collar
    1 × 200mm to 150mm Reducer Collar
Basket total£9.95

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
220×90mm Flat Ducting Pipe 200mm Short Section
£12.95

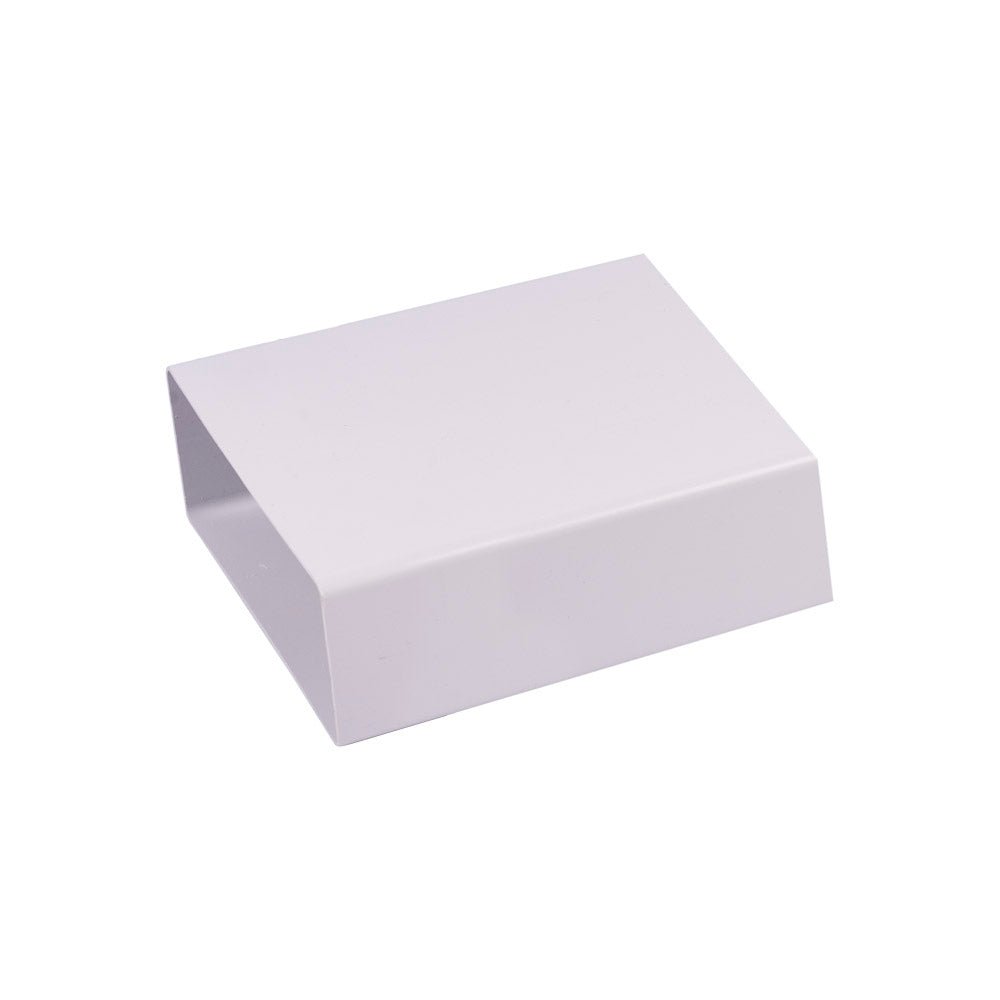

220mm × 90mm Flat Ducting Pipe — 200mm Short Section

This is a 200mm short section of 220mm × 90mm flat rectangular ducting pipe — the same push-fit airtight System150 component as the 1 metre pipe, in a short length for specific installation scenarios. It is part of the Luxair System150 6" ducting range.

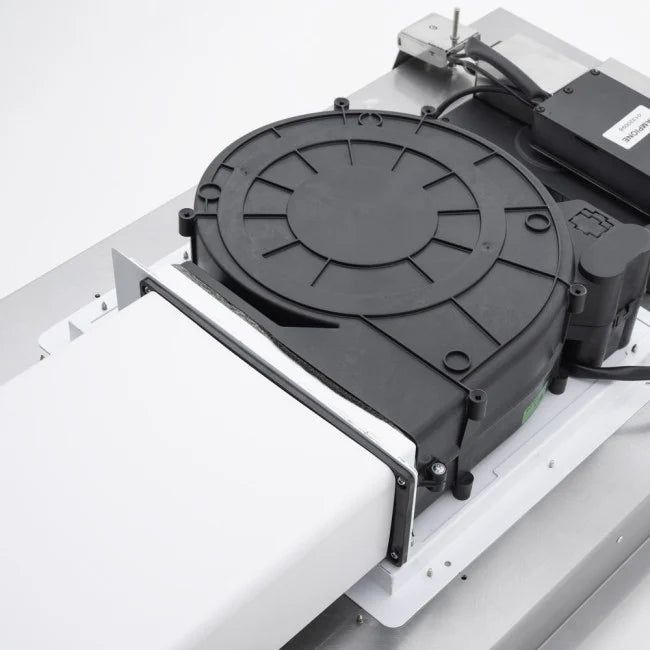

Primary Use — Connecting Ceiling Hood Flat Radial Motors to Round Ducting

This short section is most commonly used to bridge the flat motor outlet of a Luxair ceiling cooker hood to the round ducting run above it, using one of the following System150 adapters:

Option 1 — Horizontal transition:

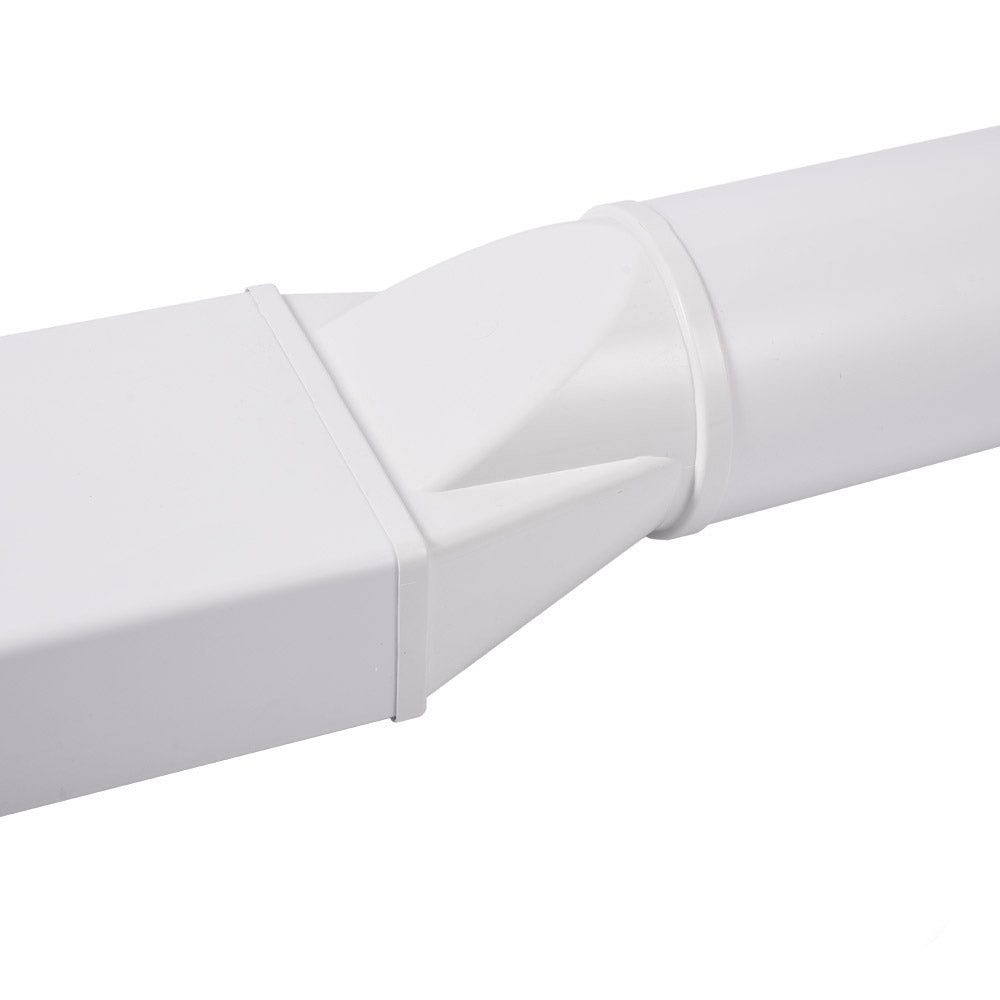

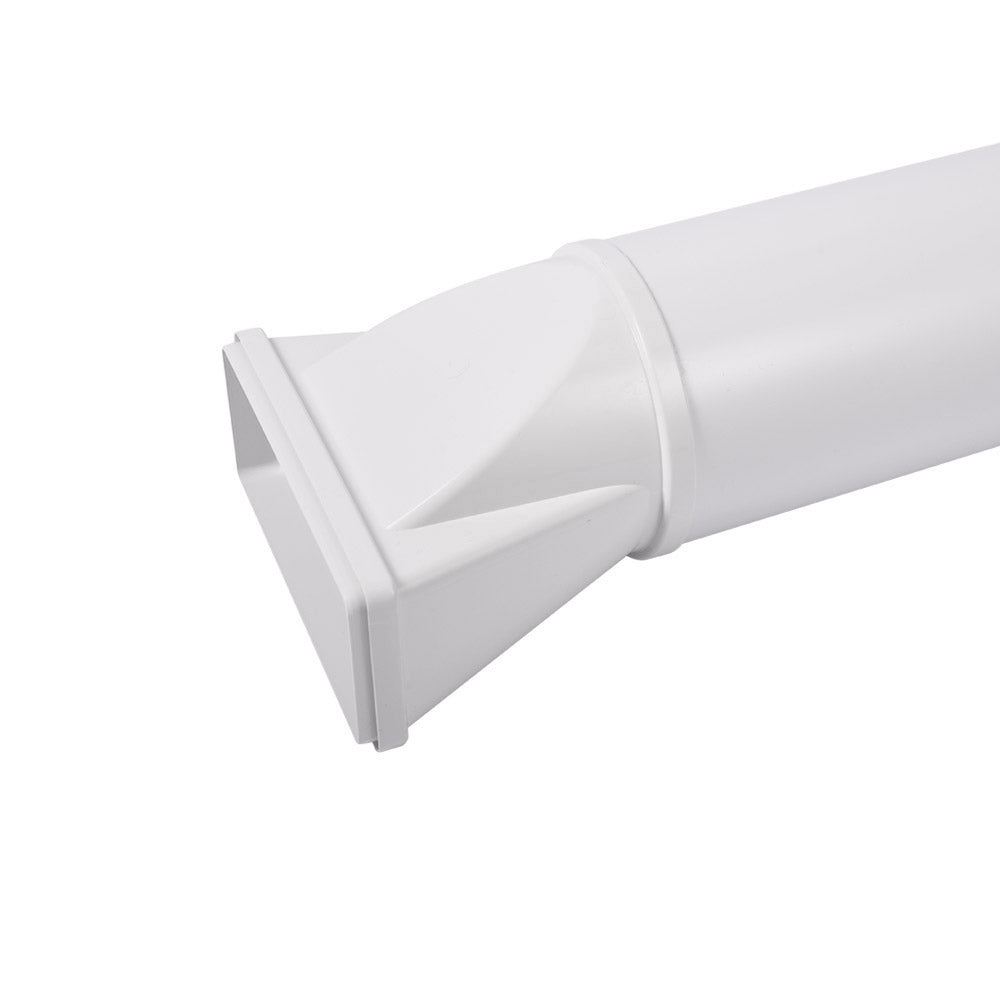

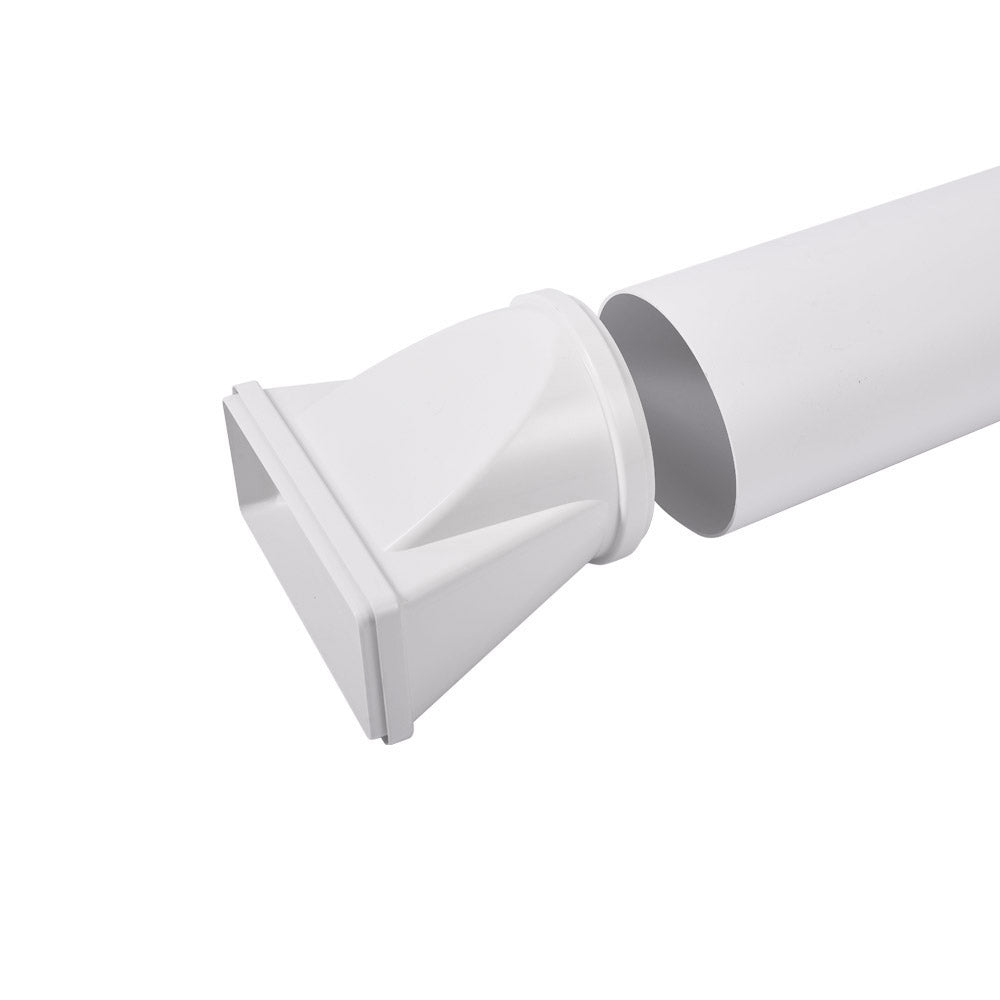

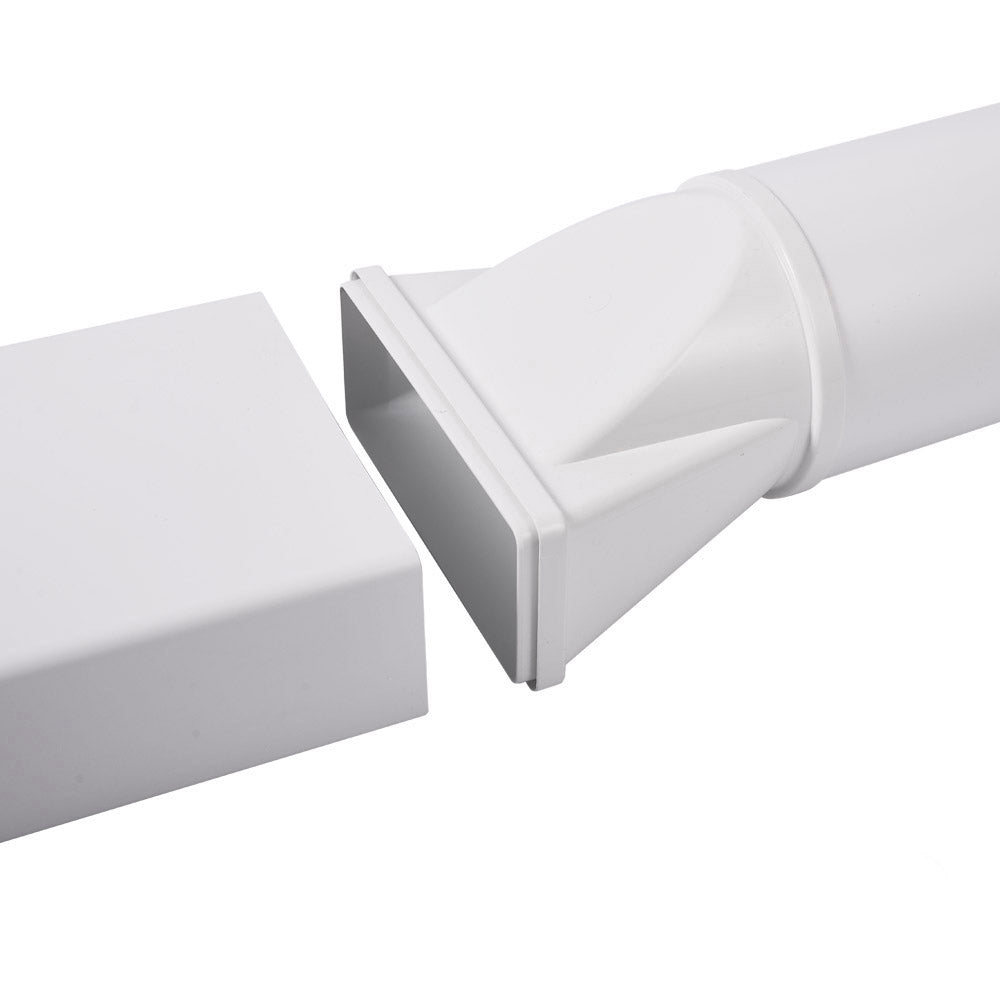

Use the 150mm Round to 220mm × 90mm Horizontal Connector — connects the flat motor outlet horizontally to a 150mm round duct run.

Option 2 — 90° transition:
Use the 220mm × 90mm Round to Rectangular 90° Elbow — connects the flat motor outlet at a right angle into a 150mm round duct run.

In both cases, this 200mm short section provides the flat duct length needed between the motor spigot and the adapter, where a full 1 metre pipe would be impractical in the available ceiling void space.

Construction and Performance

Pipe ends are female and will accept all male System150 fittings. Manufactured from flame-retardant polymer — lightweight and simple to fit. The push-fit airtight connector system requires no ducting tape at any joint. Suitable for cooker hoods with motor speeds up to 1,200m³/hr. More efficient than flexible aluminium pipe across all extraction rates.

Ducting Size Guide

Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:

  • Below 450m³/hr → 100mm (4") ducting
  • 450–750m³/hr → 125mm (5") or 150mm (6") ducting
  • 750–2,000m³/hr → 150mm (6") or 200mm (8") ducting

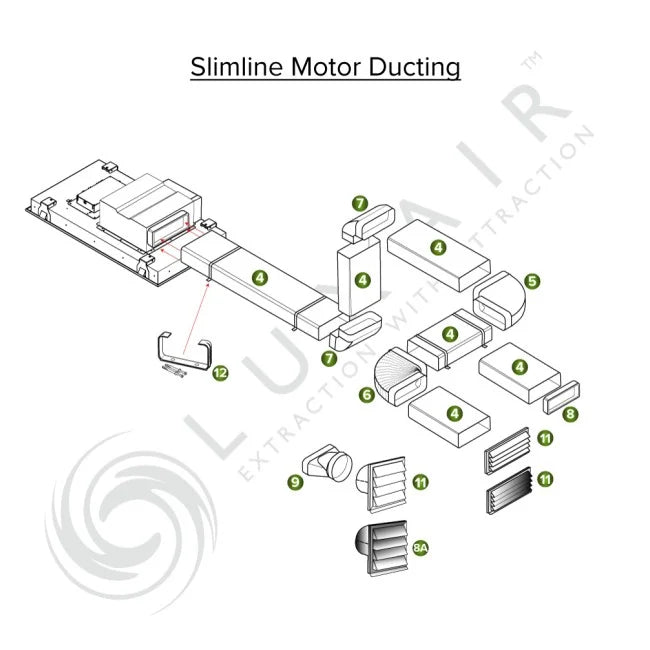

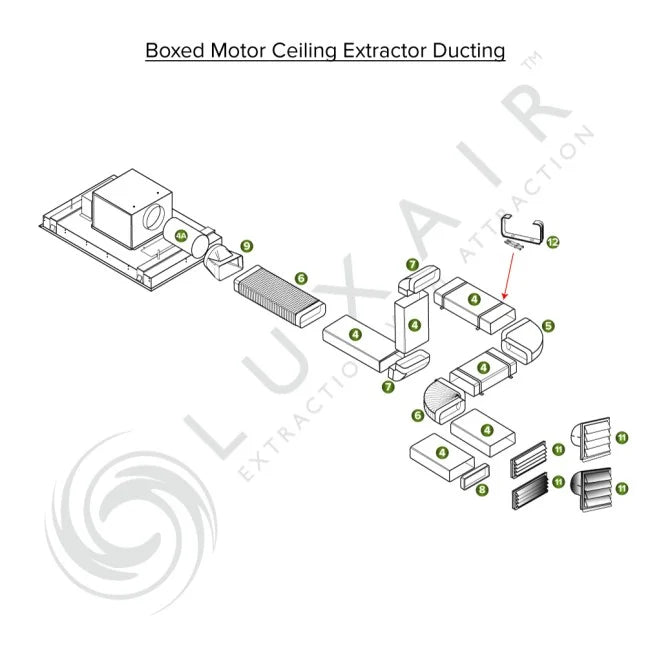

The System150 6" Ducting Range

This pipe is part of the Luxair System150 range — combining 220mm × 90mm flat rectangular ducting and 150mm round ducting, both carrying equivalent airflow rates and fully interchangeable within the system via adapters. The full range includes straight pipe sections, bends, elbows, connectors, adapters, and wall vents to complete any standard extraction installation.

✓ 220mm × 90mm flat ducting pipe — 200mm short section — for tight installation spaces where a 1 metre pipe is impractical

✓ Primary use: connecting ceiling hood flat radial motor to round ducting — use with 150mm Round to 220×90mm Horizontal Connector or 220×90mm 90° Elbow adapter

✓ Female pipe ends — accepts all male System150 fittings including adapters, bends and connectors

✓ Suitable for cooker hoods up to 1,200m³/hr — recommended for extractors with a minimum motor speed of 650m³/hr

✓ More efficient than flexible aluminium pipe — smooth interior walls reduce airflow resistance throughout the duct run

✓ Flame-retardant polymer construction — lightweight and durable with simple push-fit connections

✓ Patent-protected push-fit airtight seal — no ducting tape required at any joint

✓ Part of the Luxair System150 6" ducting range — fully compatible with all 220×90mm flat and 150mm round components

✓ Fast UK despatch — express overnight service available
