100mm 90° Round To Round Ducting Tube Elbow Connector

  • Fire resistant - Mould resistant - Recyclable

  • In stock
  • Backordered, shipping soon
Regular price£11.95
Total for selected quantity
/
Ex VAT: £9.96
Prices Shown Are Including VAT. *
This service is not currently available for the postcode entered. Please contact us to check availability.
Other Recommended Ducting And Filter Options

Optional extras — you can buy the product on its own.

Add the components you need from the ducting range.

Browse components

Match the dimensions and connection type. Round and flat ducting may require an adaptor.

Already in your basket
  • Pyramid - 60cm to 110cm Wall Mounted Cooker Hood
    1 × Pyramid - 60cm to 110cm Wall Mounted Cooker Hood — Ivory-Cream / 60cm
Basket total£169.15

These items are already added. The main product quantity reflects your basket; component selections add extra items.

View cart
100mm 90° Round To Round Ducting Tube Elbow Connector
£11.95

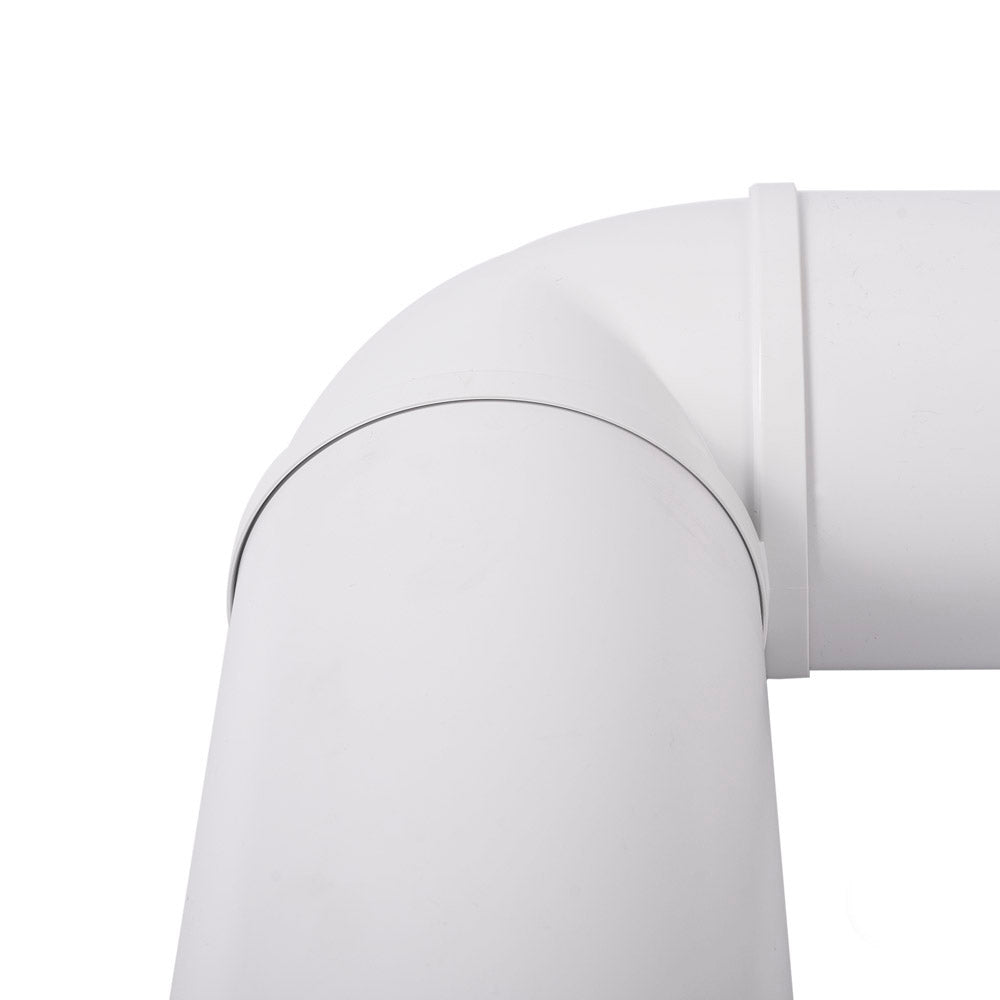

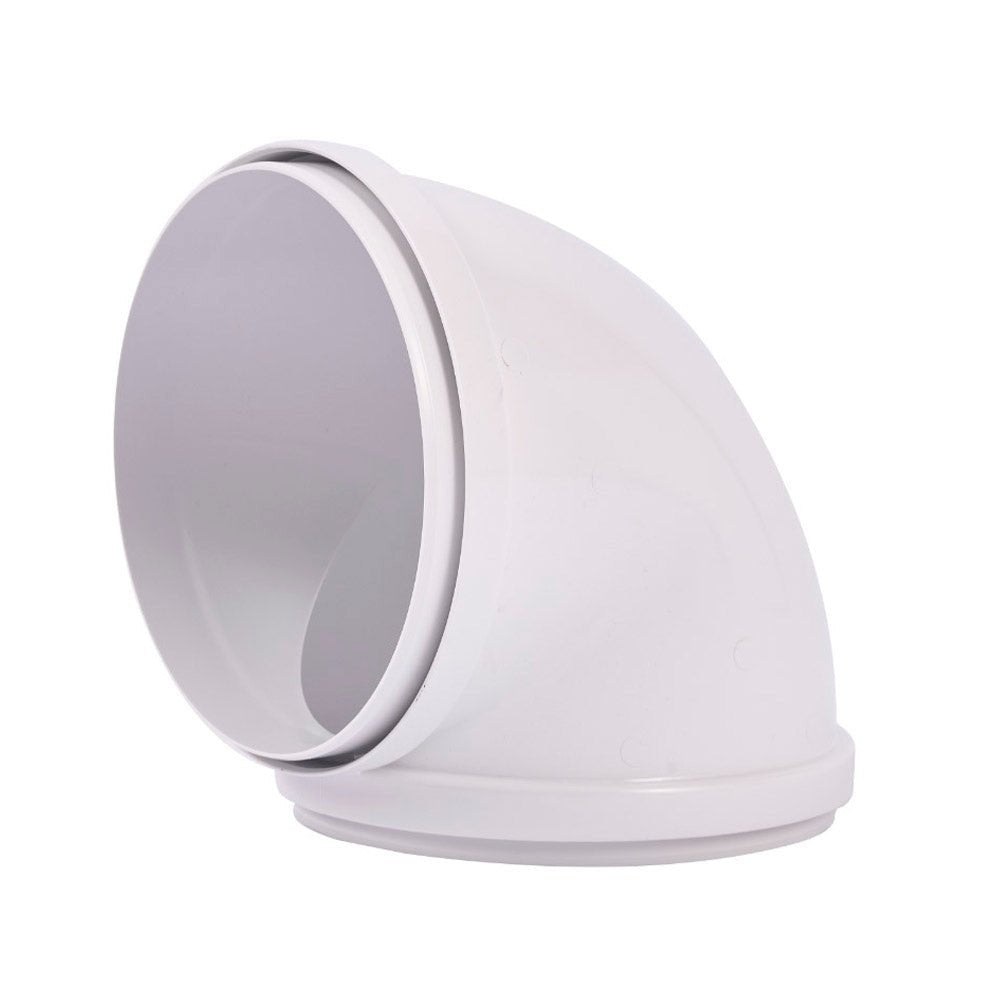

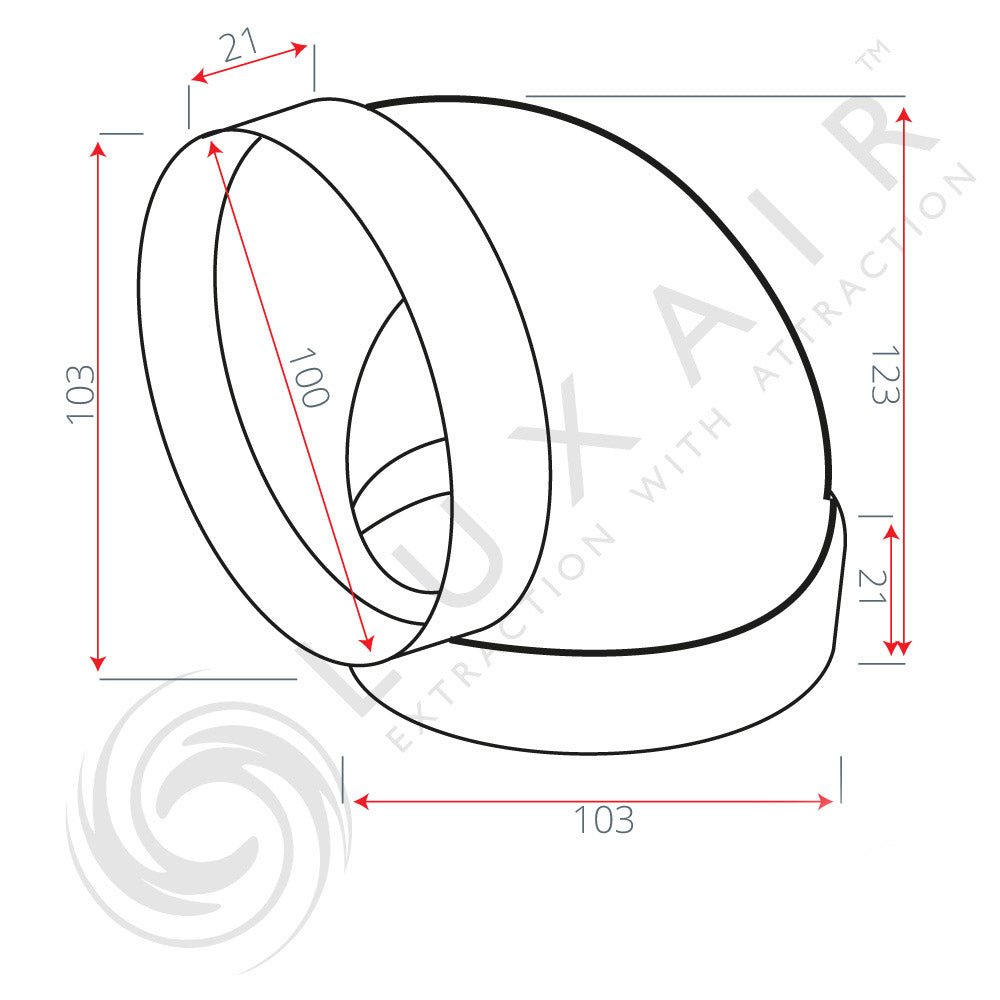

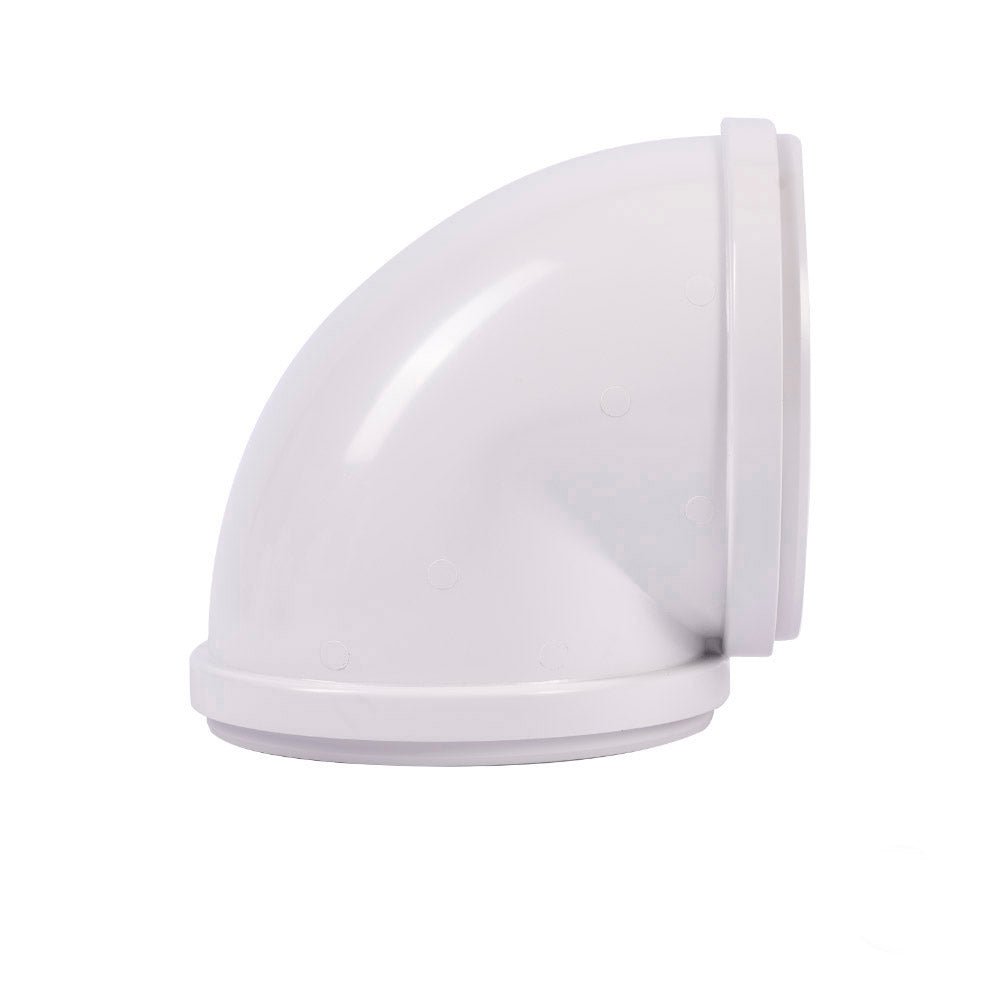

The Luxair 100mm 90° round ducting elbow connector

joins two 100mm (4") round ducting pipes at a right angle, allowing your cooker hood ducting run to change direction cleanly and efficiently through a 90° bend. Self-sealing push fit construction means no ducting tape is required at the joint — the connector simply pushes together and forms an airtight seal. Made from solid, rigid, fire-resistant and mould-resistant polymer, it's built for permanent installation behind kitchen walls, ceiling voids, and cabinet runs.

Self-Sealing Push Fit — No Tape, No Mess

Unlike flexible ducting hose connections that rely on tape for an airtight seal, Luxair's rigid round ducting system uses a self-sealing push fit joint — the connector and pipe click together with enough precision to form an airtight connection without tape, sealant, or clips. This makes installation faster, cleaner, and more reliable over the long term.

What This Part Is For — And When You Need It

A 90° elbow is used when your ducting run needs to turn a corner. The most common scenarios are routing ducting from a wall-mounted cooker hood horizontally through an external wall directly behind the hood, changing direction from a vertical run up through a ceiling cavity to a horizontal run across the loft space, or navigating around a joist, structural element, or pipework that sits in the direct ducting path. If your ducting run requires a 45° bend rather than a full 90°, Luxair also stocks 45° elbow connectors in the same 100mm diameter — check the related products below.

Is 100mm the Right Size for Your Hood?

100mm (4") ducting is suitable for cooker hood motors rated below 450 m³/hr. If your hood has a higher-rated motor, you'll need larger ducting for full extraction efficiency — undersized ducting restricts airflow, reduces motor performance, and increases noise. Luxair's recommendation by motor rating:

  • Below 450 m³/hr → 100mm (4") ducting
  • 450–750 m³/hr → 125mm (5") or 150mm (6") ducting
  • 750–2000 m³/hr → 150mm (6") or 200mm (8") ducting

If you're unsure what size your hood requires, check the motor airflow rating on your product label or installation guide, and match it to the guide above. Luxair stocks 90° elbow connectors in 100mm, 125mm, 150mm, and 200mm — all available in the ducting section.

Self-Sealing Push Fit — No Tape Required
Rigid round-to-round connection forms an airtight seal on contact. No ducting tape, sealant, or clips needed at the joint.

90° Right Angle Bend
Connects two 100mm round ducting pipes at a precise 90° angle — ideal for navigating corners, changing direction through walls, or routing around joists and structural elements.

Fire Resistant Polymer Construction
Manufactured from solid, rigid fire-resistant polymer — built for permanent concealed installation behind walls, in ceiling voids, and within kitchen cabinet runs.

Mould Resistant
Resistant to moisture and mould growth — suitable for the warm, steam-heavy environment of a kitchen ducting run.

Recyclable Material
Made from recyclable polymer — suitable for responsible disposal at end of life.

Compatible With All 100mm Round Ducting
Fits all standard 100mm (4") round rigid ducting pipe including Luxair's own 1-metre round ducting tubes and connector collars.

Suitable For Cooker Hoods Rated Below 450 m³/hr
100mm ducting is the correct size for hood motors rated below 450 m³/hr. For higher-rated motors use 125mm, 150mm, or 200mm ducting.

Next-Day UK Delivery Available
In stock and available for express overnight delivery across the UK.

Choose your cooker hood with confidence

Drawing on 25 years of Luxair experience, our cooker hood buying guide helps you compare hood styles, plan your ventilation and choose the right extraction for your kitchen.

  • Compare ceiling, wall, island and built-in hoods, downdrafts and extractor hobs.
  • Understand ducted and recirculating options, external motors, filters and ducting.
  • Check sizing, extraction rates and noise levels before you buy.
  • Explore our site survey and installation services.

Always check this product’s specifications and installation manual for compatible options and fitting requirements.

Read the cooker hood buying guide

Automatic Airtight Wall Vent

Luxair Automatic Airtight Wall Vent

125mm (5") and 150mm (6")

The Luxair Automatic Airtight Wall Vent seals shut automatically when your extractor fan is switched off, preventing warm air from escaping through the wall duct and cold air from entering. It operates entirely by air pressure when the extractor runs, the pressure opens the vent; when the extractor stops, low-maintenance springs return the vent to the sealed position. No electricity, no sensors, no maintenance beyond occasional cleaning.
